NDUL03N150CG

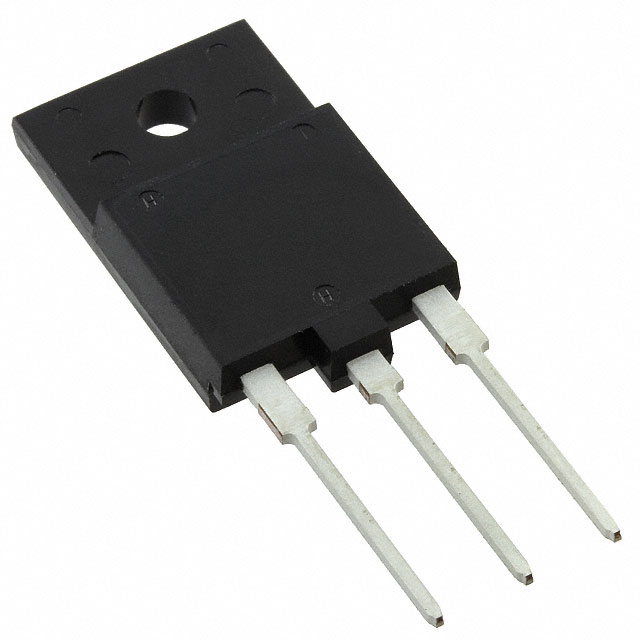

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NDUL03N150CG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NDUL03N150CG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NDUL03N150CG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 1500V 2.5A TO3PF3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | 1020 pcs |
|---|---|---|---|---|---|
| $1.139 | $0.966 | $0.837 | $0.713 | $0.601 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NDUL03N150CG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 1500V 2.5A TO3PF3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56776 pcs | Data sheet | NDUL03N150C |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-3P(L) | Series | - |
| Rds On (Max) @ Id, Vgs | 10.5 Ohm @ 1.25A, 10V | Power Dissipation (Max) | 3W (Ta), 50W (Tc) |
| Packaging | Tube | Package / Case | TO-3PL |
| Other Names | NDUL03N150CGOS | Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 650pF @ 30V | Gate Charge (Qg) (Max) @ Vgs | 34nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 1500V |
| Detailed Description | N-Channel 1500V 2.5A (Ta) 3W (Ta), 50W (Tc) Through Hole TO-3P(L) | Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
