FDMC8010

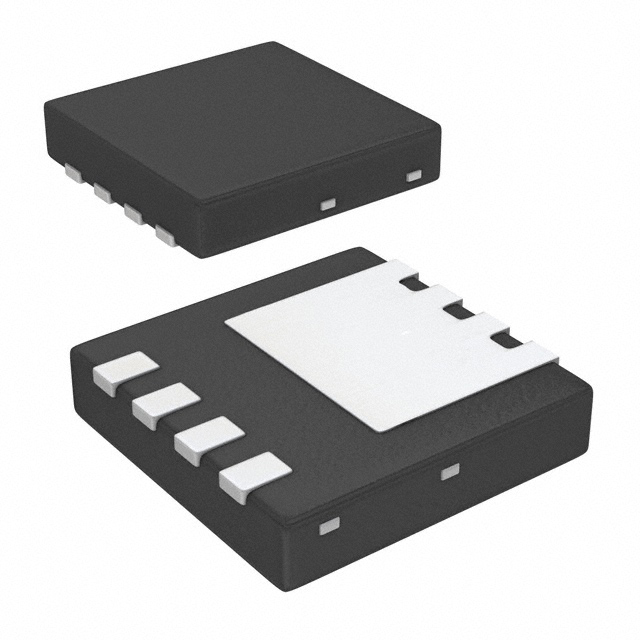

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC8010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC8010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC8010 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 30V 8-PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.439 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC8010 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 30V 8-PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89433 pcs | Data sheet | FDMC8010 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | Power33 | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 1.3 mOhm @ 30A, 10V | Power Dissipation (Max) | 2.4W (Ta), 54W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMC8010-ND FDMC8010TR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 5860pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 94nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 30A (Ta), 75A (Tc) 2.4W (Ta), 54W (Tc) Surface Mount Power33 |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 75A (Tc) |
