FDMC7696

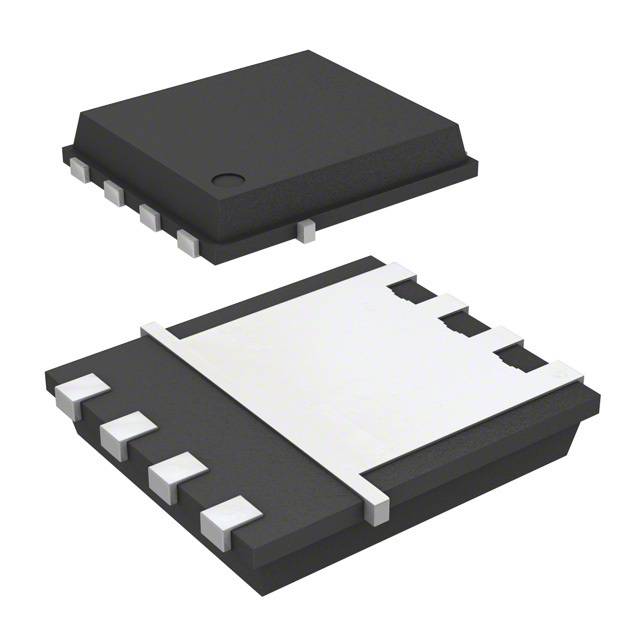

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC7696 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC7696 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC7696 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 30V 20A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.065 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC7696 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 30V 20A POWER33 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 320695 pcs | Data sheet | FDMC7696 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-MLP (3.3x3.3) | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 11.5 mOhm @ 12A, 10V | Power Dissipation (Max) | 2.4W (Ta), 25W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMC7696-ND FDMC7696_F065 FDMC7696_F065TR FDMC7696_F065TR-ND FDMC7696TR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 42 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1430pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 22nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 12A (Ta), 20A (Tc) 2.4W (Ta), 25W (Tc) Surface Mount 8-MLP (3.3x3.3) | Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 20A (Tc) |
