FDMC7692S-F126

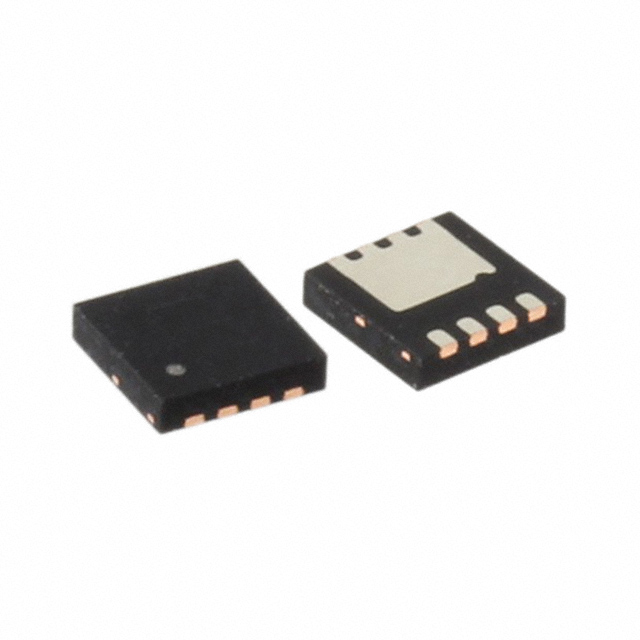

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC7692S-F126 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC7692S-F126 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC7692S-F126 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC7692S-F126 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5268 pcs | Data sheet | FDMC7692S |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-MLP (3.3x3.3) | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 9.3 mOhm @ 12.5A, 10V | Power Dissipation (Max) | 2.3W (Ta), 27W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMC7692S-F126TR FDMC7692S_F126 FDMC7692S_F126TR FDMC7692S_F126TR-ND |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1385pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 12.5A (Ta), 18A (Tc) 2.3W (Ta), 27W (Tc) Surface Mount 8-MLP (3.3x3.3) |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Ta), 18A (Tc) |
