FDMC3612

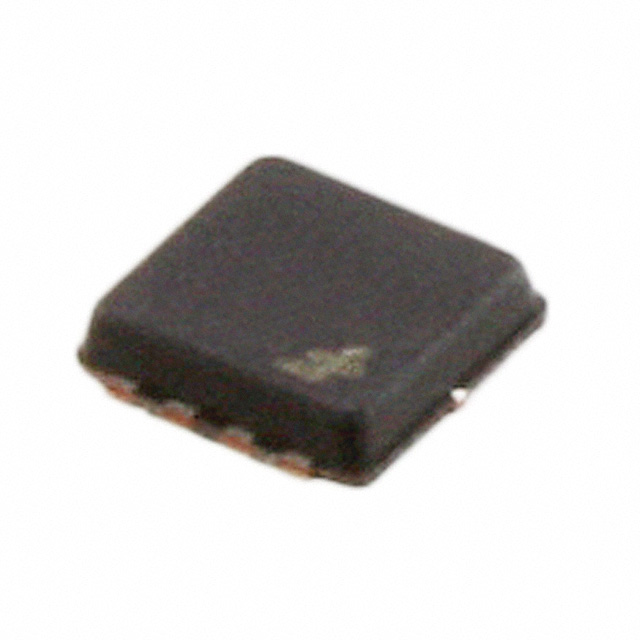

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC3612 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC3612 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC3612 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 100V 8-MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.431 | $0.382 | $0.302 | $0.234 | $0.185 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC3612 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 100V 8-MLP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103680 pcs | Data sheet | FDMC3612 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-MLP (3.3x3.3) | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 110 mOhm @ 3.3A, 10V | Power Dissipation (Max) | 2.3W (Ta), 35W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerWDFN |
| Other Names | FDMC3612CT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 23 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 880pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 21nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 3.3A (Ta), 16A (Tc) 2.3W (Ta), 35W (Tc) Surface Mount 8-MLP (3.3x3.3) | Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta), 16A (Tc) |
