FDMC15N06

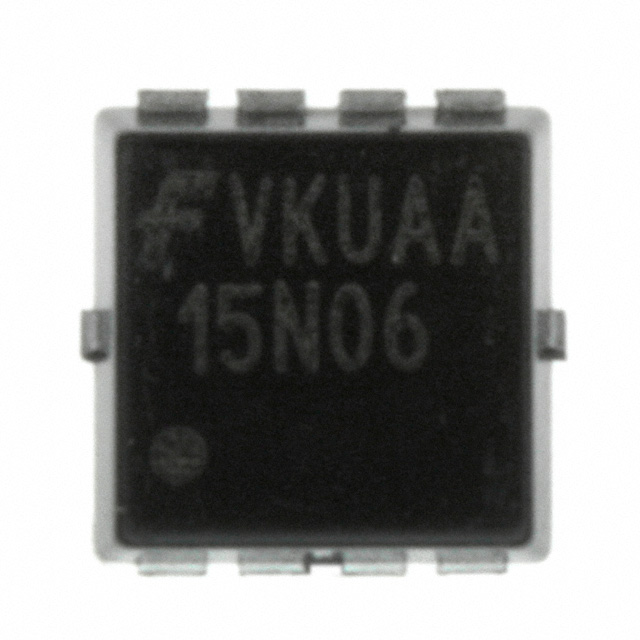

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC15N06 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC15N06 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC15N06 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 55V 2.4A MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.258 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC15N06 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 55V 2.4A MLP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86244 pcs | Data sheet | FDMC15N06 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-MLP (3.3x3.3) | Series | - |
| Rds On (Max) @ Id, Vgs | 900 mOhm @ 15A, 10V | Power Dissipation (Max) | 2.3W (Ta), 35W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMC15N06TR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 350pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 11.5nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 55V |
| Detailed Description | N-Channel 55V 2.4A (Ta), 15A (Tc) 2.3W (Ta), 35W (Tc) Surface Mount 8-MLP (3.3x3.3) | Current - Continuous Drain (Id) @ 25°C | 2.4A (Ta), 15A (Tc) |
