FDMC612PZ

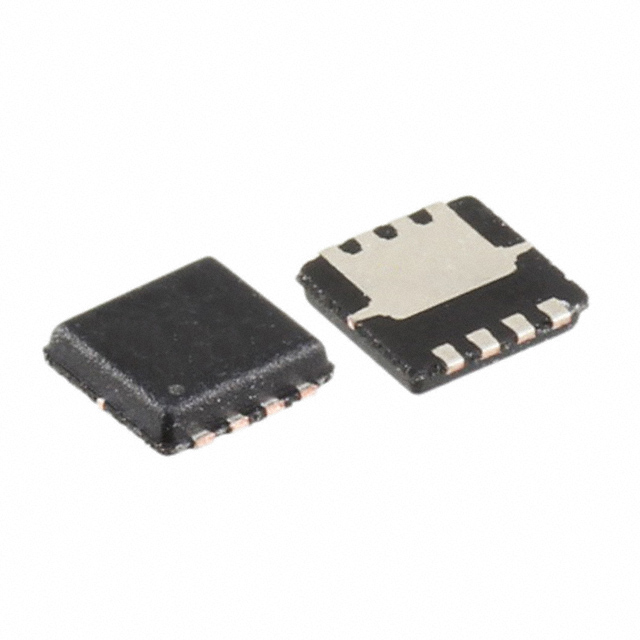

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC612PZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC612PZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC612PZ |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET P-CH 20V 8-MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.236 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC612PZ | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET P-CH 20V 8-MLP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85215 pcs | Data sheet | FDMC612PZ |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | ±12V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-MLP (3.3x3.3) | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 8.4 mOhm @ 14A, 4.5V | Power Dissipation (Max) | 2.3W (Ta), 26W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMC612PZTR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 7995pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 74nC @ 4.5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | P-Channel 20V 14A (Ta) 2.3W (Ta), 26W (Tc) Surface Mount 8-MLP (3.3x3.3) |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta) |
