Home > Products > Connectors, Interconnects > Rectangular Connectors - Free Hanging, Panel Mount > CHG-1004-001010-KCP

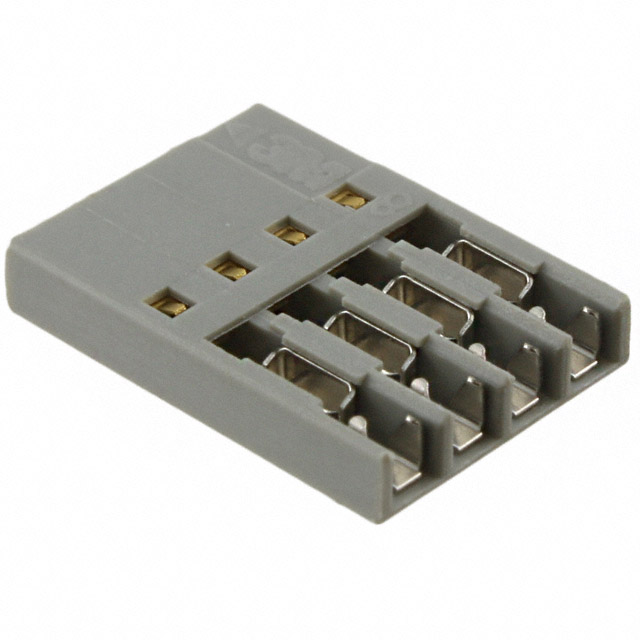

CHG-1004-001010-KCP

CHG-1004-001010-KCP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHG-1004-001010-KCP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CHG-1004-001010-KCP
Manufacturer	3M
Description	CONN RECEPT IDC 4POS 28-26 AWG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 28731 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$2.106	$2.022	$1.853	$1.769	$1.685
	$1.474	$1.432	$1.222	$1.137

Product parameter
Data sheet

Product parameter

Part Number	CHG-1004-001010-KCP	Manufacturer	3M
Description	CONN RECEPT IDC 4POS 28-26 AWG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28731 pcs	Data sheet	Interconnect Catalog CHG Series Specification CHG-10 Series Datasheet
Category	Connectors, Interconnects	Wire Type	Discrete or Ribbon Cable
Wire Gauge	26-28 AWG	Series	CHG
Row Spacing	-	Pitch	0.100" (2.54mm)
Packaging	Bulk	Other Names	00054007625490 05400762549 3M9068 5400762549 54007625490 7010396408 80610409684 CHG-1004-001010-KCP-ND CHG1004001010KCP
Number of Rows	1	Number of Positions	4
Mounting Type	Free Hanging (In-Line)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Closed End	Fastening Type	-
Detailed Description	4 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG	Contact Type	Female Socket
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Type	Receptacle	Color	Gray
Cable Termination	IDC
