Home > Products > Connectors, Interconnects > Rectangular Connectors - Free Hanging, Panel Mount > CHG-1010-001010-KCP

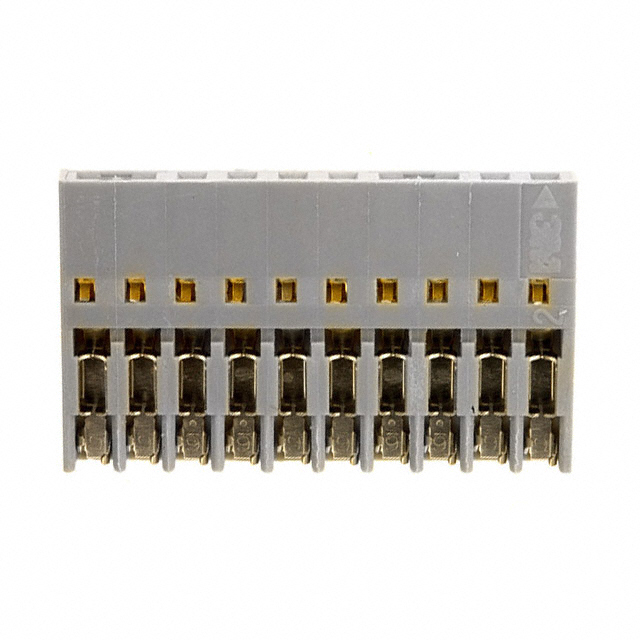

CHG-1010-001010-KCP

CHG-1010-001010-KCP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHG-1010-001010-KCP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CHG-1010-001010-KCP
Manufacturer	3M
Description	CONN RECEPT IDC 10POS 28-26 AWG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 22836 pcs
Reference Price (In US Dollars)	300 pcs
Reference Price (In US Dollars)	$1.675

Product parameter
Data sheet

Product parameter

Part Number	CHG-1010-001010-KCP	Manufacturer	3M
Description	CONN RECEPT IDC 10POS 28-26 AWG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22836 pcs	Data sheet	Interconnect Catalog CHG Series Specification CHG-10 Series Datasheet
Category	Connectors, Interconnects	Wire Type	Discrete or Ribbon Cable
Wire Gauge	26-28 AWG	Series	CHG
Row Spacing	-	Pitch	0.100" (2.54mm)
Packaging	Bulk	Other Names	00054007662303 05400766230 3M9080 5400766230 54007662303 7010348642 80610419279 CHG-1010-001010-KCP-ND CHG1010001010KCP
Number of Rows	1	Number of Positions	10
Mounting Type	Free Hanging (In-Line)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Closed End	Fastening Type	-
Detailed Description	10 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG	Contact Type	Female Socket
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Type	Receptacle	Color	Gray
Cable Termination	IDC
