Home > Products > Connectors, Interconnects > Rectangular Connectors - Free Hanging, Panel Mount > CHG-1010-001010-KEP

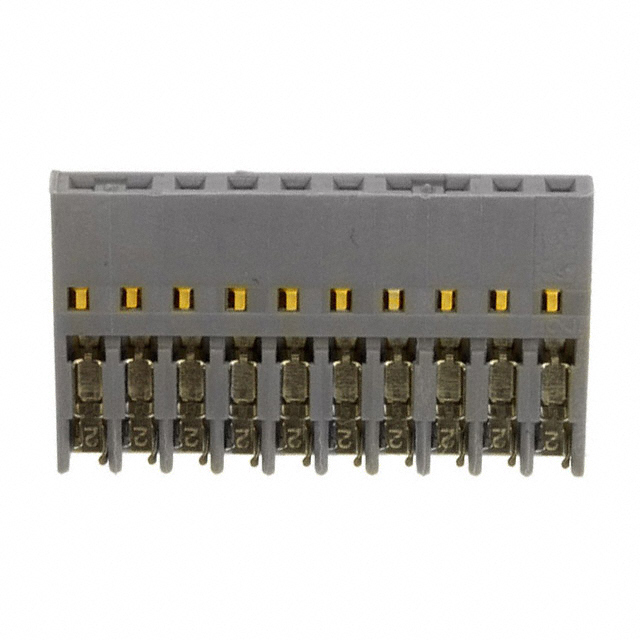

CHG-1010-001010-KEP

CHG-1010-001010-KEP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHG-1010-001010-KEP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CHG-1010-001010-KEP
Manufacturer	3M
Description	CONN RECEPT IDC 10POS 24-22 AWG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 25410 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$2.199	$2.106	$1.923	$1.831	$1.74
	$1.556	$1.465	$1.282	$1.218

Product parameter
Data sheet

Product parameter

Part Number	CHG-1010-001010-KEP	Manufacturer	3M
Description	CONN RECEPT IDC 10POS 24-22 AWG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25410 pcs	Data sheet	Interconnect Catalog CHG Series Specification CHG-10 Series Datasheet
Category	Connectors, Interconnects	Wire Type	Discrete or Ribbon Cable
Wire Gauge	22-24 AWG	Series	CHG
Row Spacing	-	Pitch	0.100" (2.54mm)
Packaging	Bulk	Other Names	00054007375159 05400737515 3M9081 5400737515 54007375159 7000057913 80610192660 CHG-1010-001010-KEP-ND CHG1010001010KEP
Number of Rows	1	Number of Positions	10
Mounting Type	Free Hanging (In-Line)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Closed End	Fastening Type	-
Detailed Description	10 Position Rectangular Receptacle Connector IDC Gold 22-24 AWG	Contact Type	Female Socket
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Type	Receptacle	Color	Gray
Cable Termination	IDC
