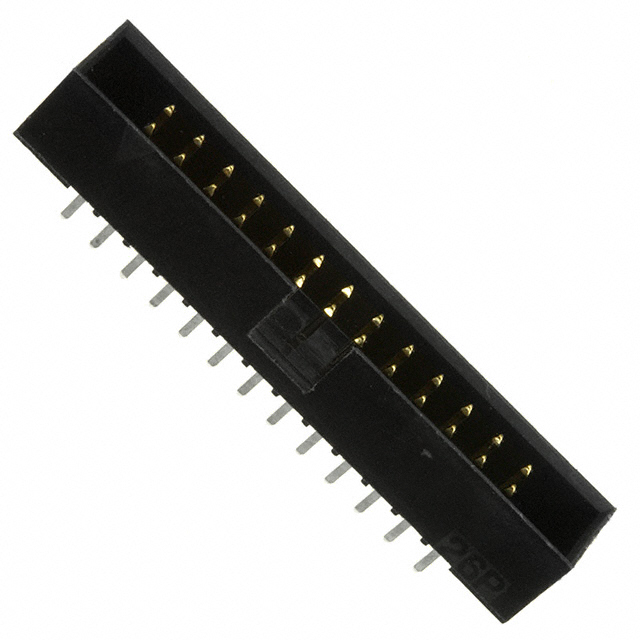

957226-6002-AR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 957226-6002-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 957226-6002-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 957226-6002-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HDR 26POS 2MM VERT T/H 10AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.102 | $1.057 | $0.881 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.749 | $0.639 | $0.573 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 957226-6002-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HDR 26POS 2MM VERT T/H 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62357 pcs | Data sheet | 957 SeriesInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | 957 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 04046719078868 3M6477 4046719078868 4671907886 70-2003-0385-0 7010341577 70200303850 9572266002AR DE500037077 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 26 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
