957226-2000-AR-TP

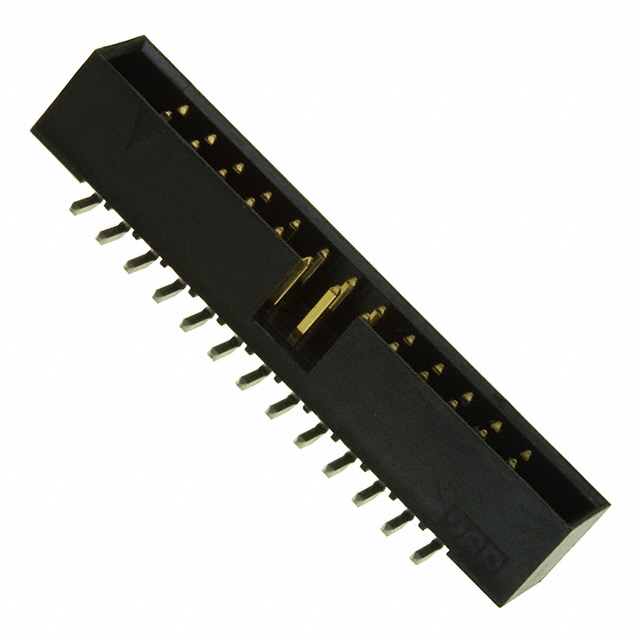

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 957226-2000-AR-TP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 957226-2000-AR-TP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 957226-2000-AR-TP |
|---|---|
| Manufacturer | 3M |
| Description | CONN HDR 26POS 2MM VERT SMD 10AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 198 pcs | ||
|---|---|---|---|---|---|
| $1.29 | $1.238 | $1.032 | |||
| 594 pcs | 1188 pcs | 5148 pcs | |||
| $0.877 | $0.748 | $0.671 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 957226-2000-AR-TP | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HDR 26POS 2MM VERT SMD 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57967 pcs | Data sheet | 957 SeriesInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | 957 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 00051119900644 3M6491 5111990064 51119900644 70-2003-0384-3 7010386546 70200303843 9572262000ARTP DE500037242 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 26 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
