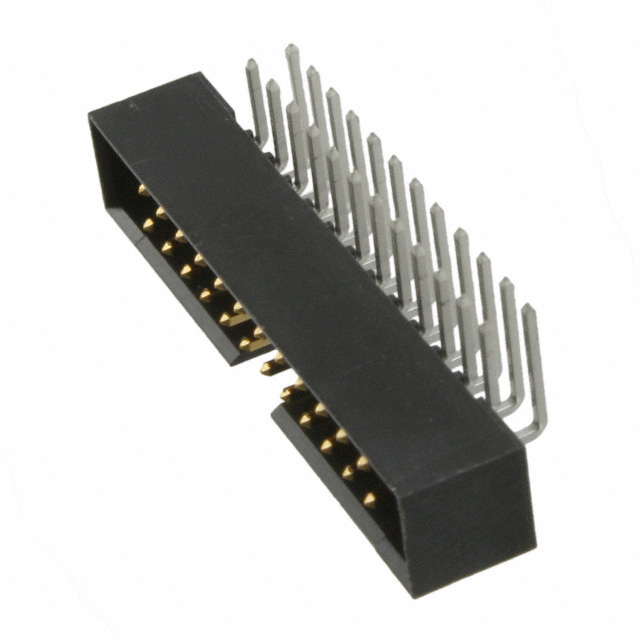

957224-5002-AR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 957224-5002-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 957224-5002-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 957224-5002-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HDR 24POS 2MM R/A T-H 10AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 8000 pcs | ||||
|---|---|---|---|---|---|
| $0.618 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 957224-5002-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HDR 24POS 2MM R/A T-H 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61116 pcs | Data sheet | 957 SeriesInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | 957 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 04046719110148 4046719110148 4671911014 70-2003-0382-7 7010341576 70200303827 9572245002AR DE500037572 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.217" (5.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 24 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
