224-5809-00-0602

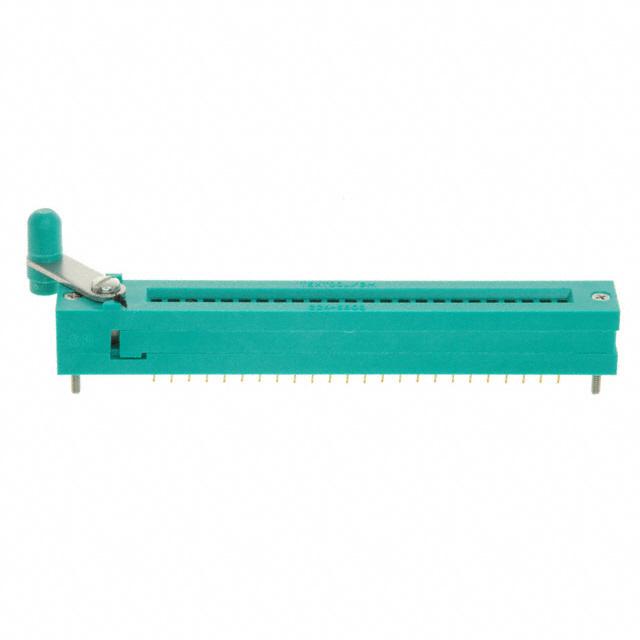

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 224-5809-00-0602 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 224-5809-00-0602 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 224-5809-00-0602 |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET SIP ZIF 24POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $14.778 | $13.34 | $12.781 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $11.982 | $11.583 | $10.944 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 224-5809-00-0602 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET SIP ZIF 24POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3189 pcs | Data sheet | SOIC Socket Pin SequenceZip Strip .100 In-Line |
| Category | Connectors, Interconnects | Type | SIP, ZIF (ZIP) |
| Termination Post Length | 0.130" (3.30mm) | Termination | Solder |
| Series | Textool™ | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 0 51138 76520 0 2.24581E+12 2245809000602 3M5063 5111530440 51115304408 7010404239 JE150378287 JE150900064 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 24 (1 x 24) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polysulfone (PSU), Glass Filled | Features | - |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
