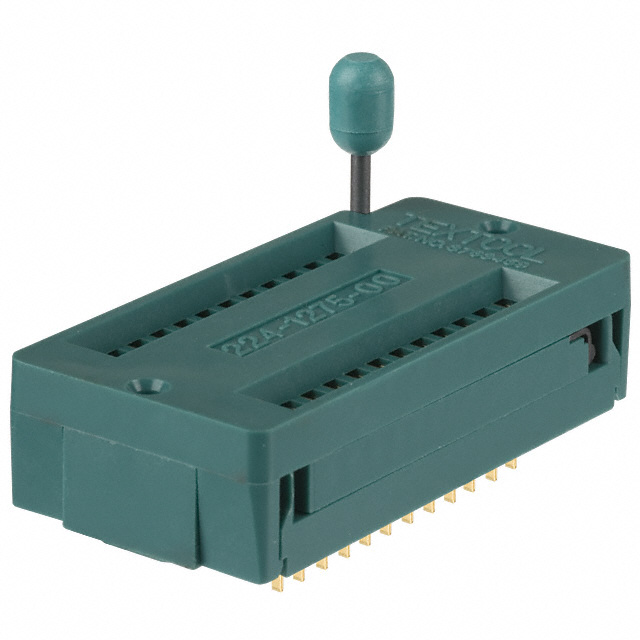

224-1275-00-0602J
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 224-1275-00-0602J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 224-1275-00-0602J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 224-1275-00-0602J |
|---|---|
| Manufacturer | 3M |
| Description | CONN IC DIP SOCKET ZIF 24POS GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.084 | $6.579 | $5.904 | $5.735 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.061 | $4.723 | $4.622 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 224-1275-00-0602J | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN IC DIP SOCKET ZIF 24POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7579 pcs | Data sheet | .100" (2.54 mm) DIP SocketsSOIC Socket Pin Sequence |
| Category | Connectors, Interconnects | Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing |
| Termination Post Length | 0.110" (2.78mm) | Termination | Press-Fit |
| Series | Textool™ | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 2002403344-000006002 224-3344-00-0602 2241275000602J 3M2402 5113876504 51138765040 5400732243 54007322436 7000007334 80-6100-9042-7 80610090427 JE-1500-8405-9 JE150084059 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 24 (2 x 12) | Mounting Type | Connector |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polysulfone (PSU), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
