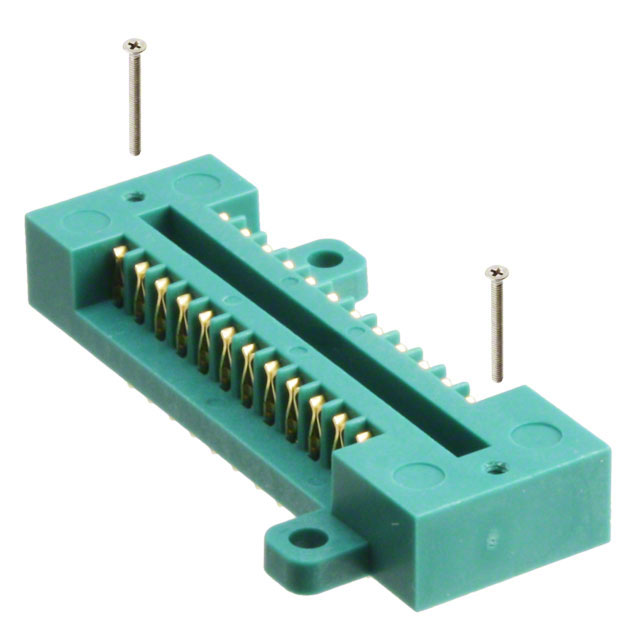

224-5248-09-0602J
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 224-5248-09-0602J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 224-5248-09-0602J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 224-5248-09-0602J |
|---|---|
| Manufacturer | 3M |
| Description | RECEPTACLE DIP SOCKET 24POS .3" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 40 pcs | ||||
|---|---|---|---|---|---|
| $5.569 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 224-5248-09-0602J | Manufacturer | 3M |
|---|---|---|---|
| Description | RECEPTACLE DIP SOCKET 24POS .3" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5775 pcs | Data sheet | Receptacles for DIP Sockets |
| Category | Connectors, Interconnects | Termination Post Length | 0.130" (3.30mm) |
| Termination | Solder | Series | Textool™ |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Other Names | 0 51138 69599 6 2245248090602J 3M5021 5113869599 51138695996 JE150900437 |
Operating Temperature | -55°C ~ 125°C |
| Number of Pins | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polysulfone (PSU), Glass Filled | Features | - |
| Detailed Description | IC Socket Adapter DIP, 0.3" (7.62mm) Row Spacing To DIP, 0.3" (7.62mm) Row Spacing Through Hole | Current Rating | 1A |
| Convert To (Adapter End) | DIP, 0.3" (7.62mm) Row Spacing | Convert From (Adapter End) | DIP, 0.3" (7.62mm) Row Spacing |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Board Material | - |
