Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Sensors > AS5048-TS_EK_DB

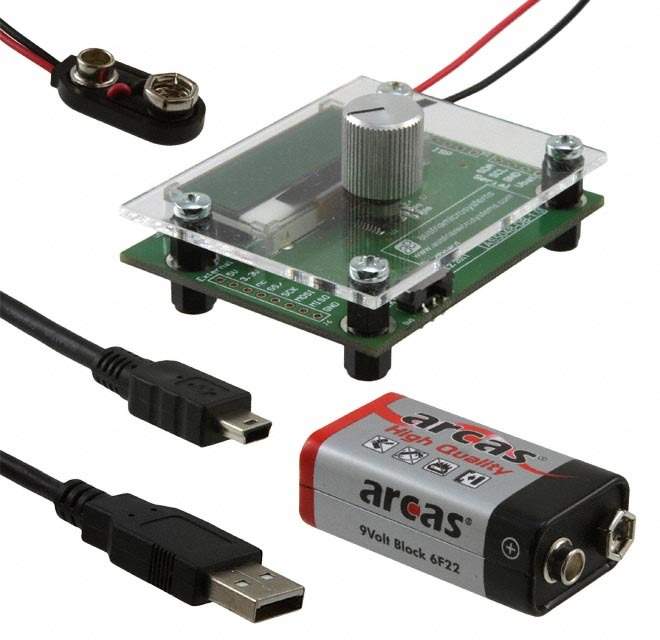

AS5048-TS_EK_DB

AS5048-TS_EK_DB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS5048-TS_EK_DB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AS5048-TS_EK_DB
Manufacturer	ams
Description	BOARD DEMO AS5048
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1050 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$33.177

Product parameter
Data sheet

Product parameter

Part Number	AS5048-TS_EK_DB	Manufacturer	ams
Description	BOARD DEMO AS5048	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1050 pcs	Data sheet	AS5048 Demoboard Manual
Category	Development Boards, Kits, Programmers	Voltage - Supply	5V USB or 9V
Utilized IC / Part	AS5048	Supplied Contents	Board(s)
Series	-	Sensor Type	Magnetic, Linear, Rotary Position
Sensitivity	-	Sensing Range	360°
Other Names	990600489 AS5048-DB-1.0 AS5048DB10	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	USB	Embedded	Yes, MCU, 8-Bit
Detailed Description	AS5048 - Magnetic, Linear, Rotary Position Sensor Evaluation Board
