Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Sensors > AS5047D-TS_EK_AB

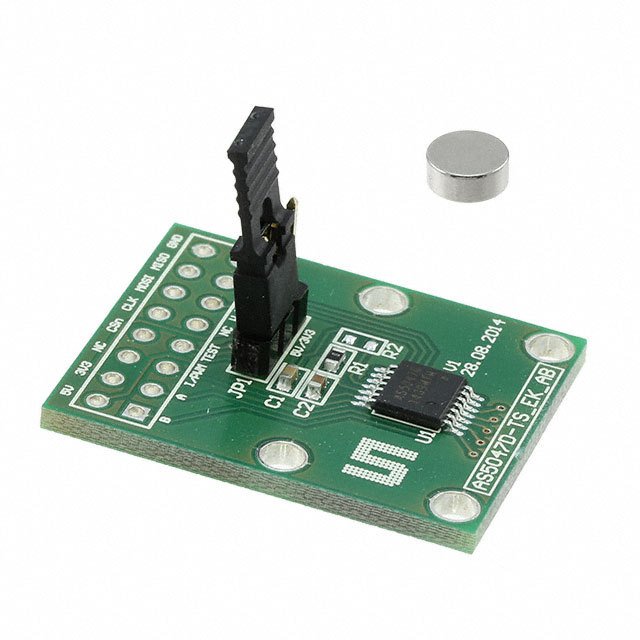

AS5047D-TS_EK_AB

AS5047D-TS_EK_AB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS5047D-TS_EK_AB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AS5047D-TS_EK_AB
Manufacturer	ams
Description	SOCKET BOARD AS5047D
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 4596 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$6.609

Product parameter
Data sheet

Product parameter

Part Number	AS5047D-TS_EK_AB	Manufacturer	ams
Description	SOCKET BOARD AS5047D	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4596 pcs	Data sheet	AS5047D Datasheet AS5x47-TS_EK_SB Manual
Category	Development Boards, Kits, Programmers	Voltage - Supply	3.3V, 5V
Utilized IC / Part	AS5047D	Supplied Contents	Board(s), Accessories
Series	-	Sensor Type	Magnetic, Rotary Position
Sensitivity	-	Sensing Range	360°
Other Names	990600772 AS5047D AS5047D-EK-AB AS5047DEKAB	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Interface	SPI	Embedded	No
Detailed Description	AS5047D - Magnetic, Rotary Position Sensor Evaluation Board
