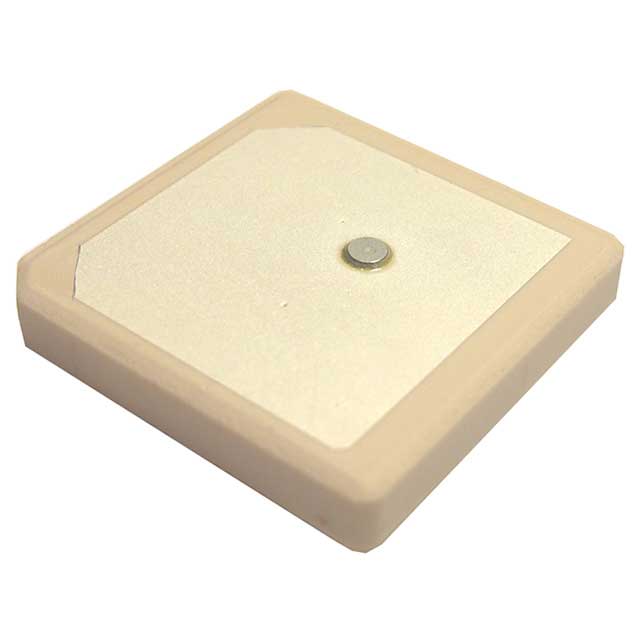

ANT2525B00DT1516S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANT2525B00DT1516S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANT2525B00DT1516S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANT2525B00DT1516S |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 1.575/1.602GHZ CER PATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 200 pcs | |
|---|---|---|---|---|---|
| $2.161 | $1.931 | $1.738 | $1.583 | ||
| 400 pcs | 600 pcs | 1000 pcs | 2600 pcs | ||
| $1.429 | $1.282 | $1.081 | $1.027 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANT2525B00DT1516S | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 1.575/1.602GHZ CER PATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33811 pcs | Data sheet | ANT2525B00DT1516S |
| Category | RF/IF and RFID | VSWR | 2 |
| Termination | Pin | Series | - |
| Return Loss | -26.18dB, -26.412dB | Packaging | Tray |
| Other Names | 311-1539 ANT2525B00DT1516A CAN43134250D1561B |
Number of Bands | 2 |
| Mounting Type | Adhesive | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.157" (4.00mm) |
| Gain | 5dBi, 4.79dBi | Frequency Range | 1.575GHz ~ 1.606GHz |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | Frequency (Center/Band) | 1.575GHz, 1.602GHz |
| Features | - | Detailed Description | 1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.575GHz ~ 1.606GHz 5dBi, 4.79dBi Pin Adhesive |
| Applications | GLONASS, GPS | Antenna Type | Ceramic Patch |
