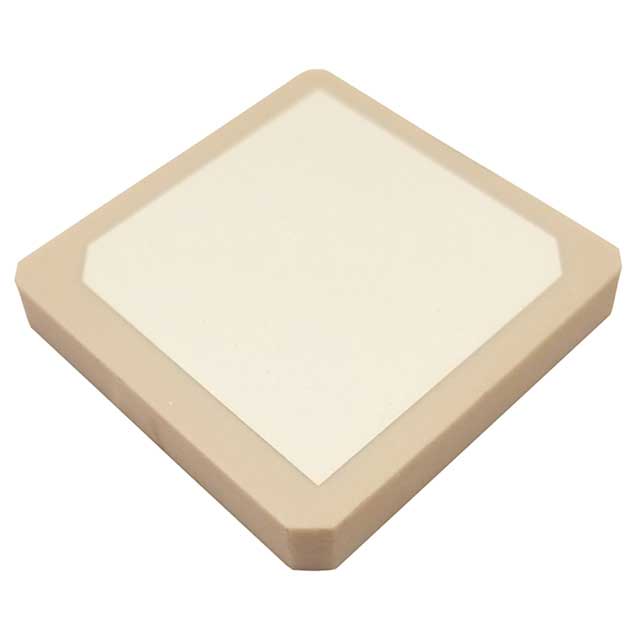

ANT2525B00BT1575S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANT2525B00BT1575S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANT2525B00BT1575S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANT2525B00BT1575S |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 1.575GHZ CER PATCH SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 200 pcs | 400 pcs |
|---|---|---|---|---|---|
| $1.421 | $1.269 | $1.142 | $1.041 | $0.939 | |
| 600 pcs | 1000 pcs | 2600 pcs | 5000 pcs | ||
| $0.843 | $0.711 | $0.675 | $0.65 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANT2525B00BT1575S | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 1.575GHZ CER PATCH SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57549 pcs | Data sheet | ANT2525B00BT1575S |
| Category | RF/IF and RFID | VSWR | 1.5 |
| Termination | Solder | Series | - |
| Return Loss | -34.626dB | Packaging | Tray |
| Other Names | 311-1538 ANT2525B00BT1575A CAN43134250B1581B |
Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.157" (4.00mm) |
| Gain | 5.5dBic | Frequency Range | 1.57GHz ~ 1.59GHz |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | Frequency (Center/Band) | 1.575GHz |
| Features | - | Detailed Description | 1.575GHz GPS Ceramic Patch RF Antenna 1.57GHz ~ 1.59GHz 5.5dBic Solder Surface Mount |
| Applications | GPS | Antenna Type | Ceramic Patch |
