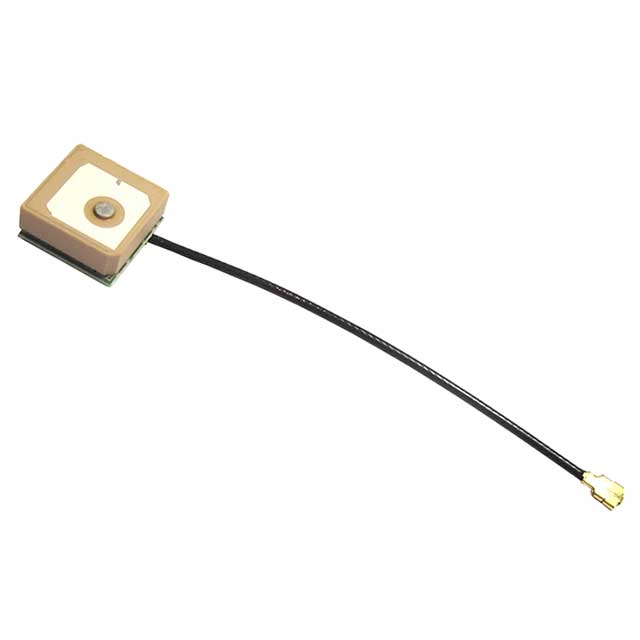

ANT1212JB27B1575A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANT1212JB27B1575A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANT1212JB27B1575A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANT1212JB27B1575A |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 1.575GHZ CER PATCH IPEX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.399 | $3.958 | $3.606 | $3.254 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.99 | $2.726 | $2.374 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANT1212JB27B1575A | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 1.575GHZ CER PATCH IPEX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14760 pcs | Data sheet | ANT1212JB27B1575A |
| Category | RF/IF and RFID | VSWR | 1.5 |
| Termination | Connector, IPEX Male | Series | - |
| Return Loss | - | Packaging | Bulk |
| Other Names | 311-1527 ANT1212JB271575A CAN4313322271581B |
Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.157" (4.00mm) |
| Gain | -4.56dBic | Frequency Range | 1.569GHz ~ 1.581GHz |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | Frequency (Center/Band) | 1.575GHz |
| Features | LNA, Filter | Detailed Description | 1.575GHz GPS Ceramic Patch RF Antenna 1.569GHz ~ 1.581GHz -4.56dBic Connector, IPEX Male Surface Mount |
| Applications | GPS | Antenna Type | Ceramic Patch |
