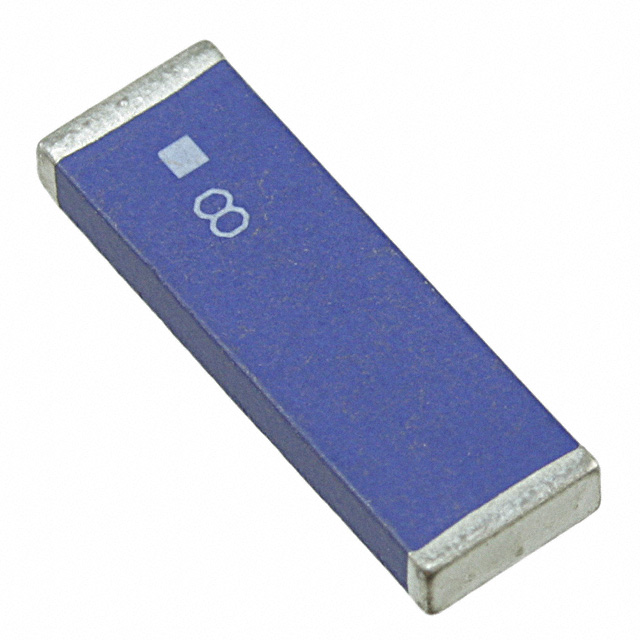

ANT1204LL05R0915A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANT1204LL05R0915A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANT1204LL05R0915A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANT1204LL05R0915A |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 915MHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.106 | $0.988 | $0.889 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.81 | $0.731 | $0.656 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANT1204LL05R0915A | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 915MHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51888 pcs | Data sheet | ANT1204LL05R0915A |
| Category | RF/IF and RFID | VSWR | 2 |
| Termination | Solder | Series | - |
| Return Loss | -13.35dB | Power - Max | 1W |
| Packaging | Cut Tape (CT) | Other Names | 311-1525-1 |
| Number of Bands | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.063" (1.60mm) | Gain | 3.32dBi |
| Frequency Range | 905MHz ~ 925MHz | Frequency Group | UHF (300 MHz ~ 1 GHz) |
| Frequency (Center/Band) | 915MHz | Features | - |
| Detailed Description | 915MHz ZigBee™ Chip RF Antenna 905MHz ~ 925MHz 3.32dBi Solder Surface Mount | Applications | ZigBee™ |
| Antenna Type | Chip |
