7687709471
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7687709471 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7687709471 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7687709471 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | FIXED IND 470UH 970MA 800 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $0.957 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7687709471 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | FIXED IND 470UH 970MA 800 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40774 pcs | Data sheet | 7687709471 Drawing |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Shielding | Shielded |
| Series | WE-PD HV | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 732-4546-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 470µH |
| Height - Seated (Max) | 0.413" (10.50mm) | Frequency - Self Resonant | 1.9MHz |
| Detailed Description | 470µH Shielded Wirewound Inductor 970mA 800 mOhm Max Nonstandard | DC Resistance (DCR) | 800 mOhm Max |
| Current Rating | 970mA | Current - Saturation | 1.4A |
- Related products
- Related news
Related products
- Part#:
768772-1 - Manufacturers:
Agastat Relays / TE Connectivity - Description:
SLIDER, B CLAMP - In Stock:
51
- Part#:
768770-1 - Manufacturers:
Agastat Relays / TE Connectivity - Description:
PLATE, RIGHT - In Stock:
61
- Part#:

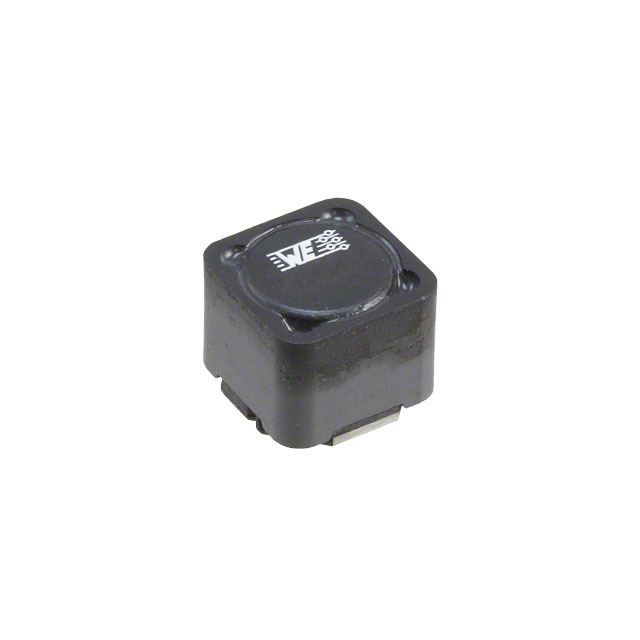

7687709102 - Manufacturers:
