760301301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760301301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760301301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760301301 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | XFRMR GATE DRIVE SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 350 pcs | ||||
|---|---|---|---|---|---|
| $2.174 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 760301301 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | XFRMR GATE DRIVE SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18121 pcs | Data sheet | 760301301 Drawing |
| Category | Transformers | Turns Ratio - Primary:Secondary | 1:1:1 |
| Transformer Type | Gate Drive | Size / Dimension | 0.413" L x 0.413" W (10.50mm x 10.50mm) |
| Series | WE-GDT | Packaging | Tape & Reel (TR) |
| Other Names | 732-5630-2 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 750µH | Height - Seated (Max) | 0.433" (11.00mm) |
| Energy Time (E.T.) | 102V µS |
- Related products
- Related news
Related products

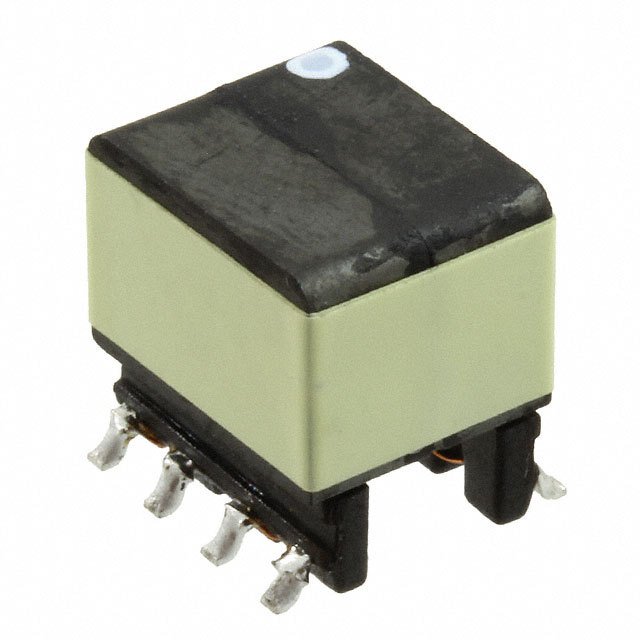

- Part#:
