749251040

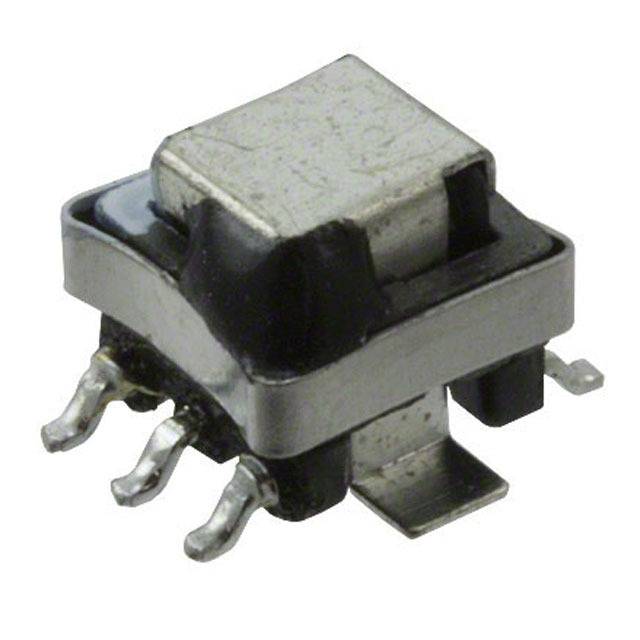

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 749251040 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 749251040 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 749251040 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CURR SENSE XFMR 1:40 10A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | ||||
|---|---|---|---|---|---|
| $1.336 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 749251040 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:40 10A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25504 pcs | Data sheet | 749251040 |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:40 |
| Termination Style | Gull Wing | Size / Dimension | 0.303" L x 0.272" W (7.70mm x 6.90mm) |
| Series | WE-CST | Ratings | - |
| Packaging | Tape & Reel (TR) | Other Names | 732-3281-2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 320µH | Height - Seated (Max) | 0.210" (5.33mm) |
| Frequency Range | - | Energy Time (E.T.) | 20V µS |
| Detailed Description | 1:40 Current Sense Transformer 6 mOhm Primary, 900 mOhm Secondary 320µH Surface Mount | DC Resistance (DCR) | 6 mOhm Primary, 900 mOhm Secondary |
| Current Ratio | - |
