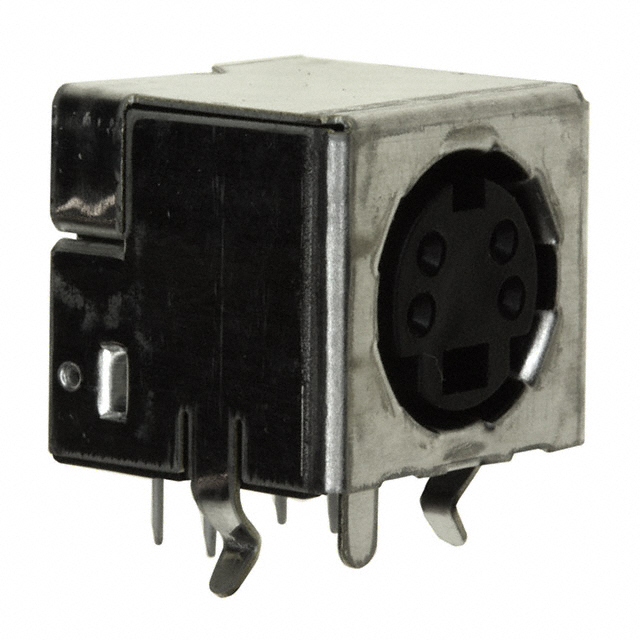

749230-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 749230-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 749230-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 749230-1 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN RECEPT RTANG 4 POS MINI PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 749230-1 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN RECEPT RTANG 4 POS MINI PCB | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4687 pcs | Data sheet | 749230 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 30VDC |
| Type Attributes | - | Termination | Solder |
| Shell Size - Insert (Convert From) | Thermoplastic | Shell Material, Finish | - |
| Series | - | RoHS Status | Tube |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 4 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Part Number | 749230-1 | Large Diameter Supplied | Mini DIN |
| Features | Board Lock, Shielded | Expanded Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Gold |
| Description | CONN RECEPT RTANG 4 POS MINI PCB | Current Rating | 1A |
| Current - Max/Contact | Push-Pull | Contact Material | Keyed |
| Contact Finish Thickness | Gold | Connector Type | Receptacle, Female Sockets |
| Cable Diameter | Flash |
