7447709220

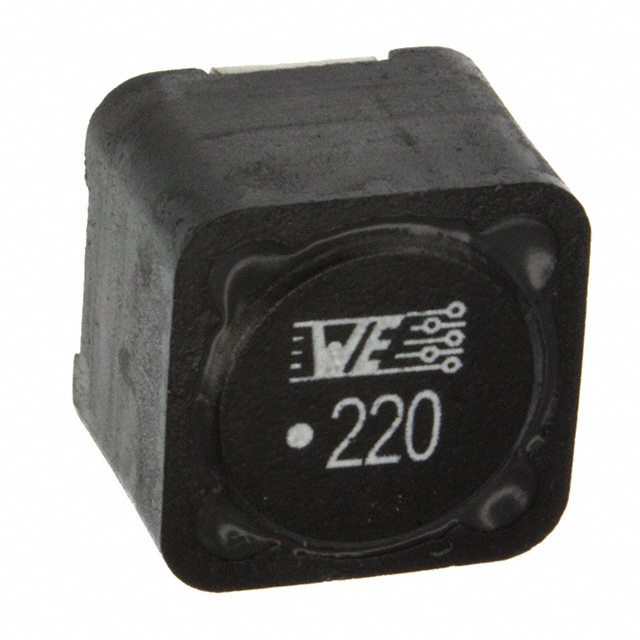

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7447709220 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7447709220 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7447709220 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | FIXED IND 22UH 5.3A 28 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 1250 pcs | ||
|---|---|---|---|---|---|
| $0.589 | $0.546 | $0.499 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7447709220 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | FIXED IND 22UH 5.3A 28 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68485 pcs | Data sheet | 7447709220 |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Shielding | Shielded |
| Series | WE-PD | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 732-1243-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 22µH |
| Height - Seated (Max) | 0.394" (10.00mm) | Frequency - Self Resonant | 10MHz |
| Detailed Description | 22µH Shielded Wirewound Inductor 5.3A 28 mOhm Max Nonstandard | DC Resistance (DCR) | 28 mOhm Max |
| Current Rating | 5.3A | Current - Saturation | 6.5A |
