7447709003

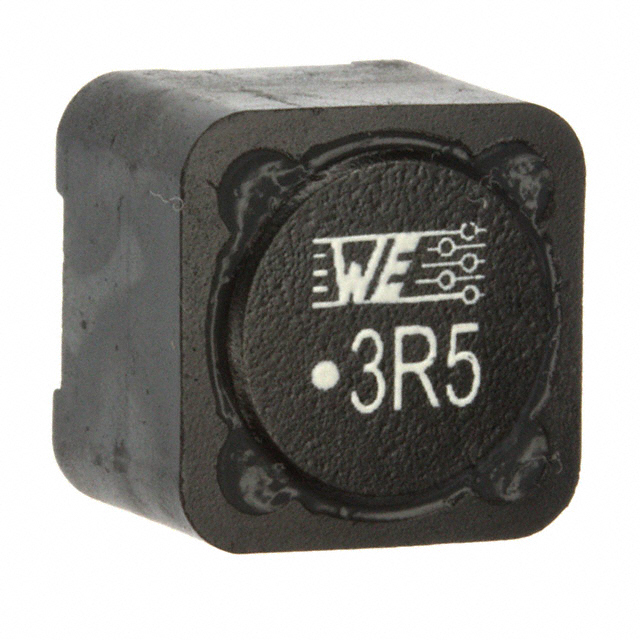

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7447709003 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7447709003 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7447709003 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | FIXED IND 3.5UH 11A 9 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $0.576 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7447709003 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | FIXED IND 3.5UH 11A 9 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61730 pcs | Data sheet | 7447709003 |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) | Shielding | Shielded |
| Series | WE-PD | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 732-1238-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 3.5µH |
| Height - Seated (Max) | 0.394" (10.00mm) | Frequency - Self Resonant | 45MHz |
| Detailed Description | 3.5µH Shielded Wirewound Inductor 11A 9 mOhm Max Nonstandard | DC Resistance (DCR) | 9 mOhm Max |
| Current Rating | 11A | Current - Saturation | 16.5A |
