690368170872

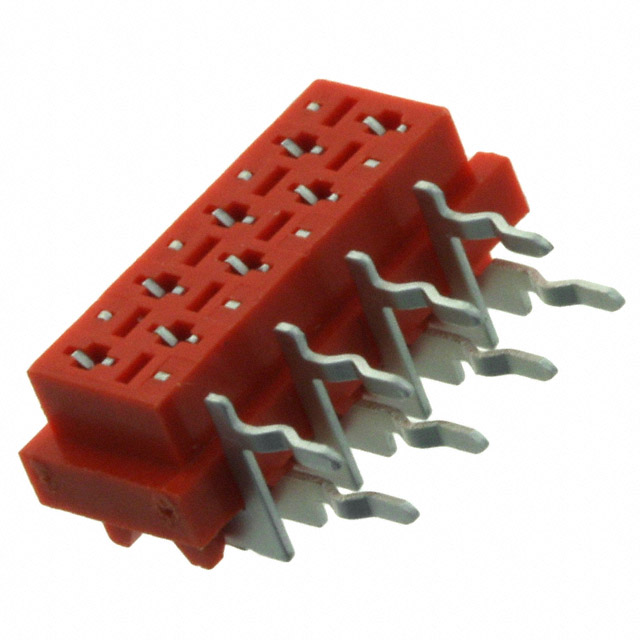

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 690368170872 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 690368170872 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 690368170872 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN 2.54MM FEM ANGLED POLAR 8P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.279 | $0.267 | $0.257 | $0.247 | $0.221 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 690368170872 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN 2.54MM FEM ANGLED POLAR 8P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 108250 pcs | Data sheet | MiniModule Conn WR-MM69036817xx7x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | WR-MM | Row Spacing - Mating | 0.059" (1.50mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 732-1978-5 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Current Rating | 1.5A per Contact | Contact Type | Forked |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.122" (3.10mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
