690367281276

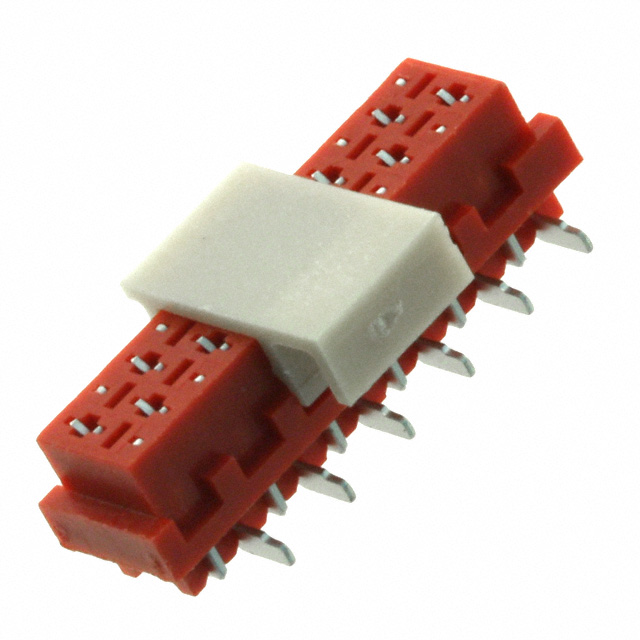

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 690367281276 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 690367281276 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 690367281276 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN 2.54MM SMD FEMALE POLAR 12P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | ||||
|---|---|---|---|---|---|
| $0.436 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 690367281276 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN 2.54MM SMD FEMALE POLAR 12P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71216 pcs | Data sheet | MiniModule Conn WR-MM69036728xx76 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | WR-MM | Row Spacing - Mating | 0.059" (1.50mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | 732-1968-2 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.207" (5.25mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 12 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin | Current Rating | 1.5A per Contact |
| Contact Type | Forked | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | - |
