686108148922

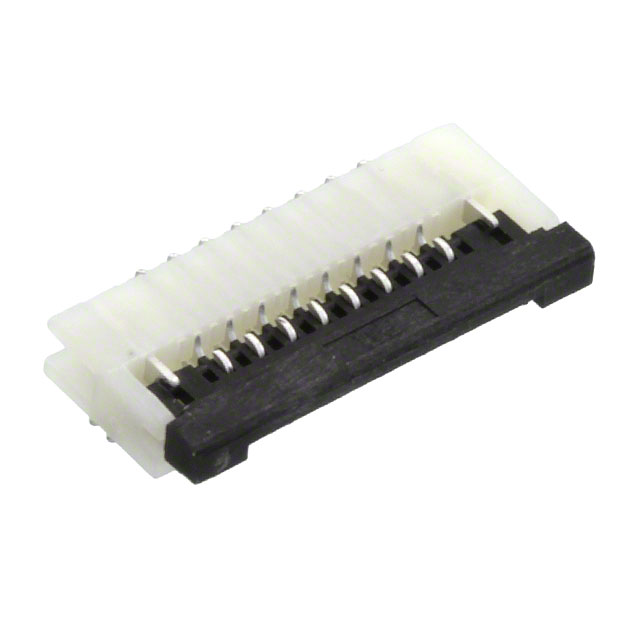

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 686108148922 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 686108148922 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 686108148922 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN 1MM HORZ BOTTOM SMD 8POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.384 | $0.363 | $0.337 | $0.311 | $0.273 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 686108148922 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN 1MM HORZ BOTTOM SMD 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88436 pcs | Data sheet | WR-FPC,FFC Series Flyer6861xx148922 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Series | WR-FPC |
| Pitch | 0.039" (1.00mm) | Packaging | Original-Reel® |
| Other Names | 732-6018-6 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA6T), Nylon 6T | Housing Color | Ivory |
| Height Above Board | 0.087" (2.20mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 8 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 120.0µin (3.05µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Polyamide (PA6T), Nylon 6T |
| Actuator Color | Black |
