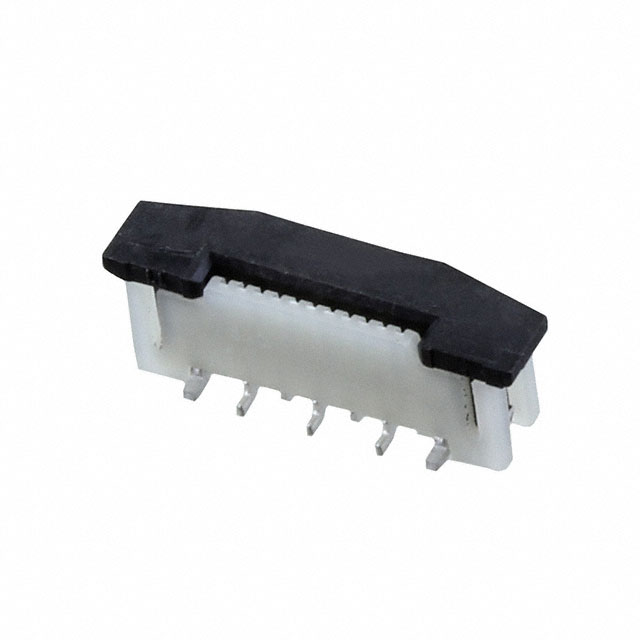

686105183822
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 686105183822 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 686105183822 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 686105183822 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CONN FFC VERT 5POS 1MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.338 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 686105183822 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CONN FFC VERT 5POS 1MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62859 pcs | Data sheet | WR-FPC,FFC Series Flyer686105183822 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | WR-FPC |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 732-11357-2 | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 5 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA6T), Nylon 6T | Housing Color | Ivory |
| Height Above Board | 0.128" (3.25mm) | Flat Flex Type | FFC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 5 Position FFC Connector Contacts, Vertical, 2 Sided 0.039" (1.00mm) Surface Mount | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 120.0µin (3.05µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 2 Sided |
| Cable End Type | Straight | Actuator Material | Polyamide (PA6T), Nylon 6T |
| Actuator Color | Black |
