1776272001

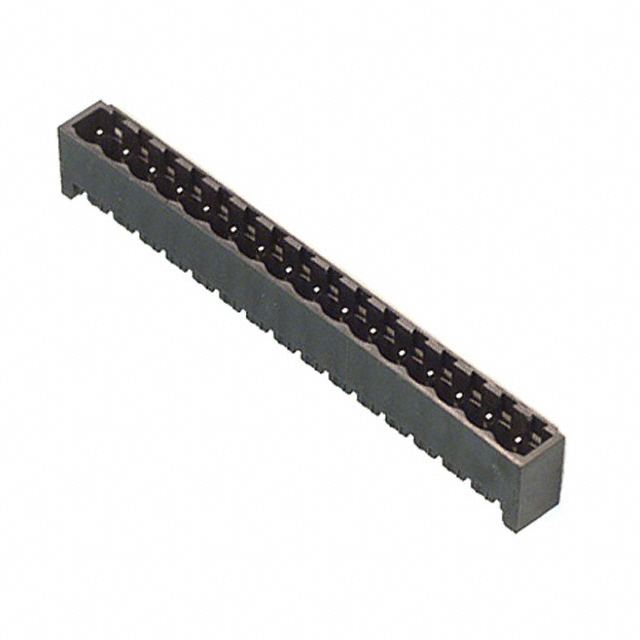

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1776272001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1776272001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1776272001 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 16POS VERT 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $1.558 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1776272001 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 16POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20012 pcs | Data sheet | 1776272001 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Omnimate SL |
| Screw Size | - | Positions Per Level | 16 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 281-1628 SL-SMT5.08/16/180G |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 16 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.472" (12.00mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Header Orientation | Vertical |
| Features | - | Detailed Description | 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
| Current - UL | 18.5A | Current - IEC | 27.5A |
| Contact Tail Length | 0.059" (1.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
