1069620000

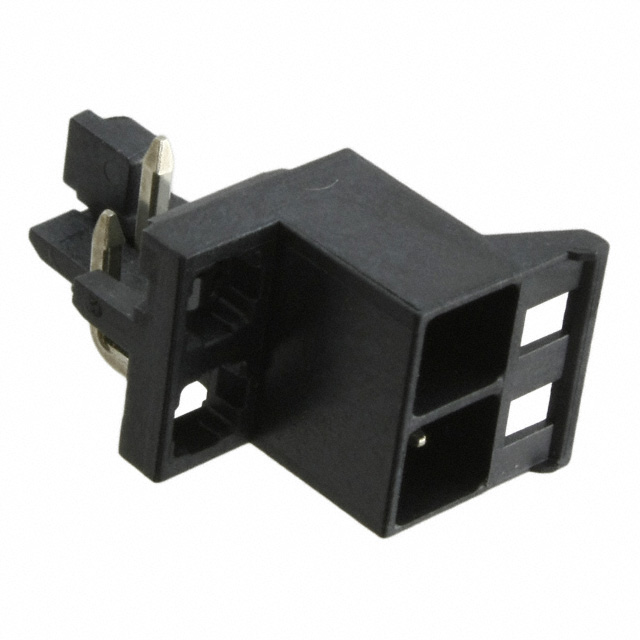

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1069620000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1069620000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1069620000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK HDR 2POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 156 pcs | ||||
|---|---|---|---|---|---|
| $0.456 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1069620000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 5MM | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 84323 pcs | Data sheet | CH20M12 & CH20M22 Assembly Instr1069620000CH20M12 Guide |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | CH20M |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 277-2784 277-2784-ND 281-2784 SHL-SMT 5.00/02GL 4.2BX |
| Operating Temperature | -50°C ~ 120°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Insulation Height | - |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Header Orientation | 90°, Right Angle, Vertical | Features | - |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle, Vertical Through Hole | Current - UL | 9A |
| Current - IEC | - | Contact Tail Length | 0.059" (1.50mm) |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Black |
