| Part Number | 1069570000 |
|---|---|
| Manufacturer | Weidmuller |

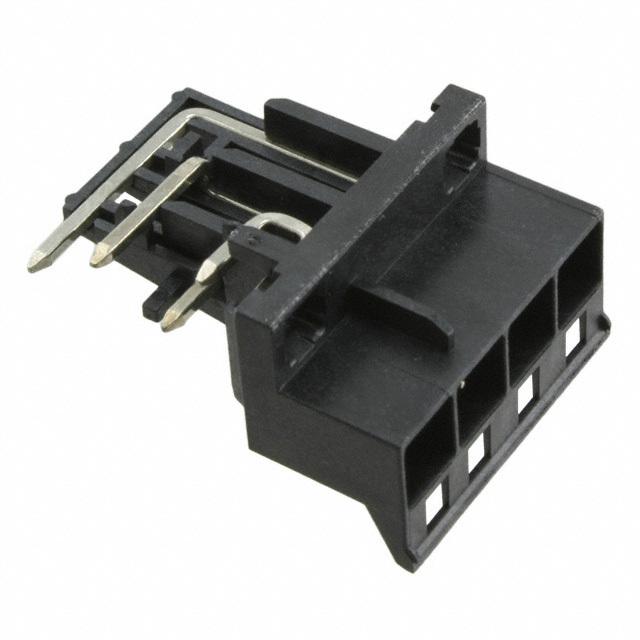

| Description | TERM BLOCK HDR 4POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.763 | $1.343 | $1.257 | $1.118 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.093 | $1.008 | $0.911 | $0.808 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1069570000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40940 pcs | Data sheet | 1069570000CH20M22 GuideCH20M12 & CH20M22 Assembly Instr |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | CH20M |
| Screw Size | - | Positions Per Level | 4 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 277-2795 277-2795-ND 281-2795 SHL-SMT 5.00/04GR 4.2BX |
| Operating Temperature | -50°C ~ 120°C | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.803" (20.40mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Header Orientation | 90°, Right Angle, Vertical |
| Features | - | Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle, Vertical Through Hole |
| Current - UL | 9A | Current - IEC | - |
| Contact Tail Length | 0.165" (4.19mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
