Home > Products > RF/IF and RFID > RF Diplexers > RFDIP2520080TM0T62

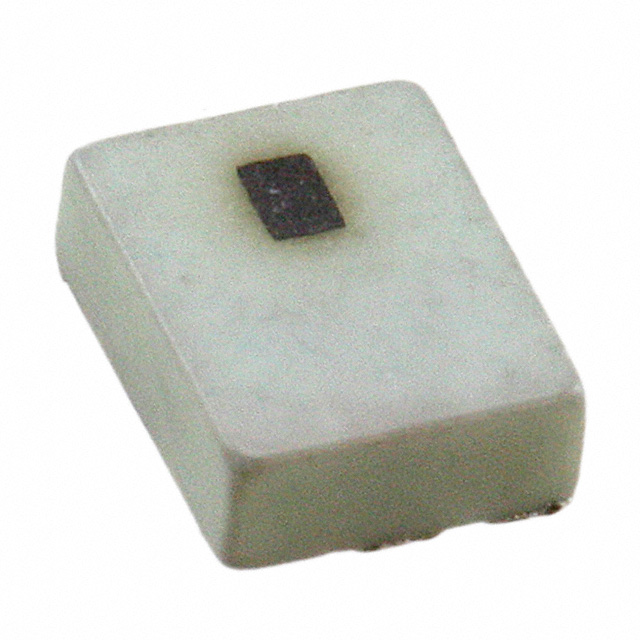

RFDIP2520080TM0T62

RFDIP2520080TM0T62

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RFDIP2520080TM0T62 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RFDIP2520080TM0T62
Manufacturer	Walsin Technology
Description	RF DIPLEXER 1.575/2.45GHZ 1008
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 334820 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$0.07

Product parameter
Data sheet

Product parameter

Part Number	RFDIP2520080TM0T62	Manufacturer	Walsin Technology
Description	RF DIPLEXER 1.575/2.45GHZ 1008	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	334820 pcs	Data sheet	RF Devices and HF Inductors Cat.
Category	RF/IF and RFID	Series	RFDIP
Return Loss (Low Band / High Band)	10dB / 10dB	Packaging	Tape & Reel (TR)
Package / Case	1008 (2520 Metric), 9 PC Pad	Other Names	1292-1034-2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Low Band Attenuation (min / max dB)	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
High Band Attenuation (min / max dB)	30.00dB / -	Frequency Bands (Low / High)	1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz
Detailed Description	RF Diplexor 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz 1008 (2520 Metric), 9 PC Pad
