Home > Products > RF/IF and RFID > RF Diplexers > RFDIP2012050L7T

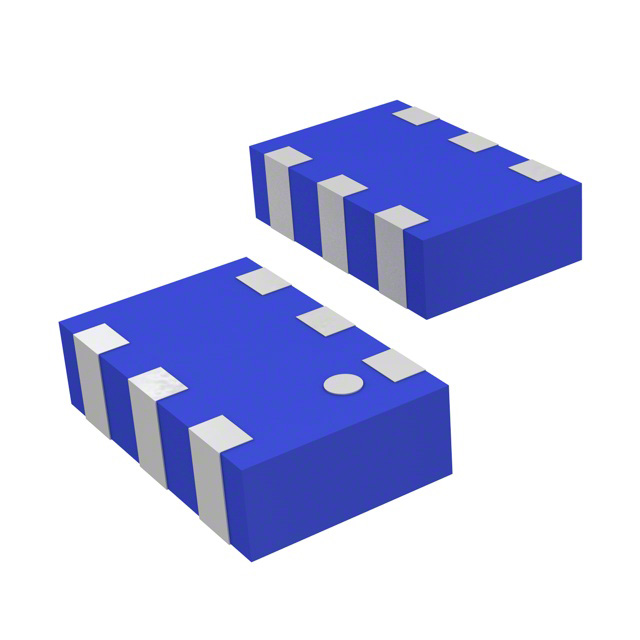

RFDIP2012050L7T

RFDIP2012050L7T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RFDIP2012050L7T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RFDIP2012050L7T
Manufacturer	Walsin Technology
Description	RF DIPLEXER 2.45GHZ/5.4GHZ 0805
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 401766 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$0.06

Product parameter
Data sheet

Product parameter

Part Number	RFDIP2012050L7T	Manufacturer	Walsin Technology
Description	RF DIPLEXER 2.45GHZ/5.4GHZ 0805	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	401766 pcs	Data sheet	RFDIP2012050L7T
Category	RF/IF and RFID	Series	RFDIP
Return Loss (Low Band / High Band)	-	Packaging	Tape & Reel (TR)
Package / Case	0805 (2012 Metric), 6 PC Pad	Other Names	1292-1033-2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Low Band Attenuation (min / max dB)	18.00dB / -	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
High Band Attenuation (min / max dB)	19.00dB / -	Frequency Bands (Low / High)	2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz
Detailed Description	RF Diplexor 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz 0805 (2012 Metric), 6 PC Pad
