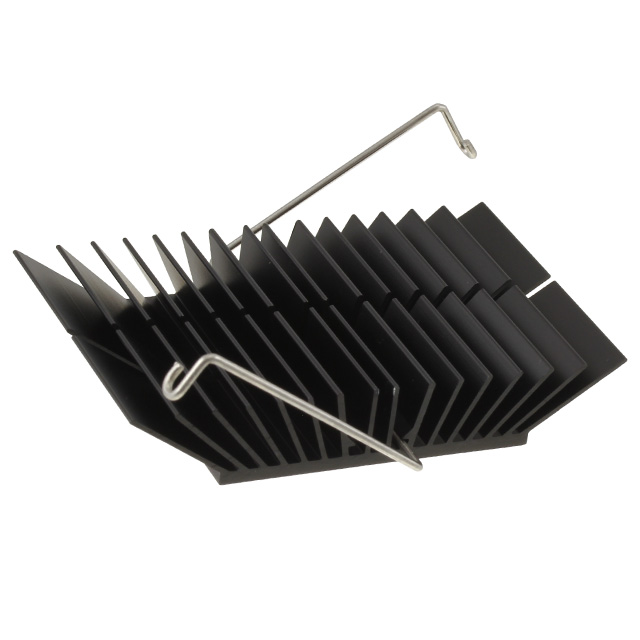

WAVE-45-12
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WAVE-45-12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WAVE-45-12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WAVE-45-12 |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | ANCHOR HEATSINK 45X45X12MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.82 | $0.799 | $0.777 | $0.734 | $0.691 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.648 | $0.626 | $0.562 | $0.551 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | WAVE-45-12 | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | ANCHOR HEATSINK 45X45X12MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64502 pcs | Data sheet | BGA Heat Sinks |
| Category | Fans, Thermal Management | Width | 1.772" (45.00mm) |
| Type | Board Level | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 2.96°C/W @ 200 LFM | Shape | Square, Angled Fins |
| Series | Wave 4x | Power Dissipation @ Temperature Rise | - |
| Package Cooled | BGA | Other Names | 345-1543 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum Alloy | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.772" (45.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.472" (12.00mm) | Diameter | - |
| Detailed Description | Heat Sink BGA Aluminum Alloy Board Level | Attachment Method | Clip |
