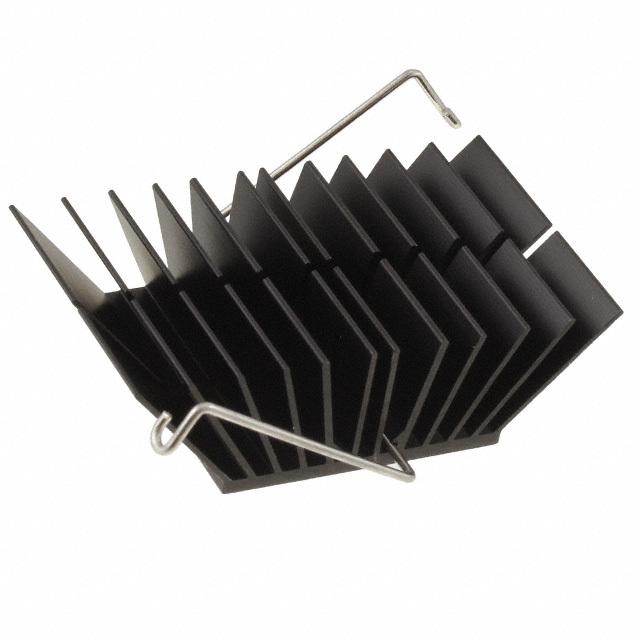

WAVE-366-175
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WAVE-366-175 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WAVE-366-175 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WAVE-366-175 |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | ANCHOR HEATSINK 36.6X36.6X17.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.763 | $0.742 | $0.722 | $0.682 | $0.642 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.602 | $0.582 | $0.521 | $0.511 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | WAVE-366-175 | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | ANCHOR HEATSINK 36.6X36.6X17.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62305 pcs | Data sheet | BGA Heat Sinks |
| Category | Fans, Thermal Management | Width | 1.441" (36.60mm) |
| Type | Board Level | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 2.55°C/W @ 200 LFM | Shape | Square, Angled Fins |
| Series | Wave 3x | Power Dissipation @ Temperature Rise | - |
| Package Cooled | BGA | Other Names | 345-1539 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum Alloy | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.441" (36.60mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.689" (17.50mm) | Diameter | - |
| Detailed Description | Heat Sink BGA Aluminum Alloy Board Level | Attachment Method | Clip |
