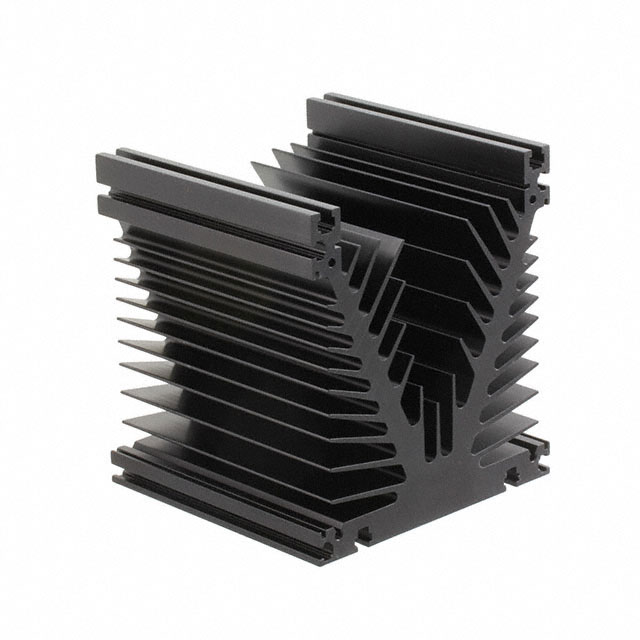

392-120AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 392-120AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 392-120AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 392-120AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HI-POWER HEATSINK SSR/IGBT/POWER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $31.678 | $29.697 | $27.717 | $26.728 | $25.738 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 392-120AB | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HI-POWER HEATSINK SSR/IGBT/POWER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1469 pcs | Data sheet | 392 Series Datasheet |
| Category | Fans, Thermal Management | Width | 4.921" (124.99mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 0.50°C/W |
| Thermal Resistance @ Forced Air Flow | 0.20°C/W @ 100 LFM | Shape | Rectangular, Fins |
| Series | 392 | Power Dissipation @ Temperature Rise | - |
| Package Cooled | Power Modules | Other Names | 345-1173 392120AB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 4.724" (120.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 5.346" (135.79mm) | Diameter | - |
| Detailed Description | Heat Sink Power Modules Aluminum Top Mount | Attachment Method | Press Fit |
