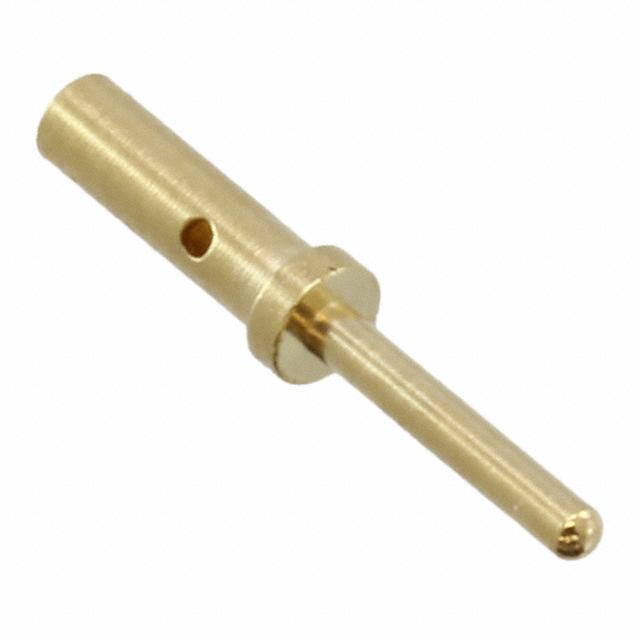

3920-0-01-15-00-00-08-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3920-0-01-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3920-0-01-15-00-00-08-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3920-0-01-15-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.040DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.144 | $0.136 | $0.117 | $0.099 | $0.095 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.086 | $0.082 | $0.068 | $0.062 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3920-0-01-15-00-00-08-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.040DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 327021 pcs | Data sheet | 39xx-x-01-xx-00-00-08-0 (in.)39xx-x-01-xx-00-00-08-0 (metric) |
| Category | Connectors, Interconnects | Termination | Crimp |
| Terminal Type | PC Pin | Terminal Style | Wire |
| Series | 3920 | Pin Size - Below Flange | 0.069" (1.75mm) Dia |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia | Packaging | Bulk |
| Other Names | 3914001150000080 ED1322 |
Mounting Type | Free Hanging (In-Line) |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.532" (13.51mm) | Length - Below Flange | 0.234" (5.94mm) |
| Length - Above Flange | 0.267" (6.78mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.093" (2.36mm) | Detailed Description | PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.040" (1.02mm) Dia |
| Contact Material | Brass Alloy | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | - |
