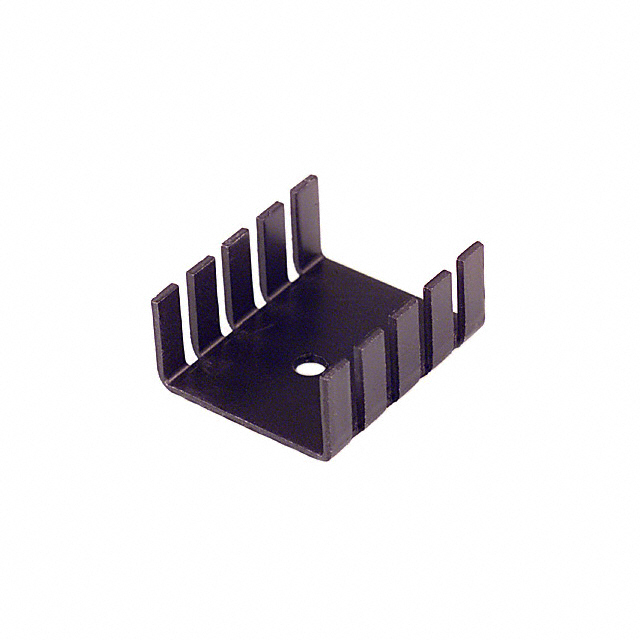

290-1AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 290-1AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 290-1AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 290-1AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK TO-220 VERT/HORZ BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.14 | $0.134 | $0.127 | $0.124 | $0.122 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.114 | $0.107 | $0.097 | $0.094 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 290-1AB | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK TO-220 VERT/HORZ BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 238012 pcs | Data sheet | 289, 290 Series DatasheetBoard Level Heat Sinks Catalog |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level | Thermal Resistance @ Natural | 22.00°C/W |
| Thermal Resistance @ Forced Air Flow | 7.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | 290 | Power Dissipation @ Temperature Rise | 2.0W @ 44°C |
| Package Cooled | TO-218, TO-202, TO-220 | Other Names | 2901AB 345-1020 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.180" (29.97mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-218, TO-202, TO-220 Aluminum 2.0W @ 44°C Board Level | Attachment Method | Bolt On |
