290-1294-00-3302J

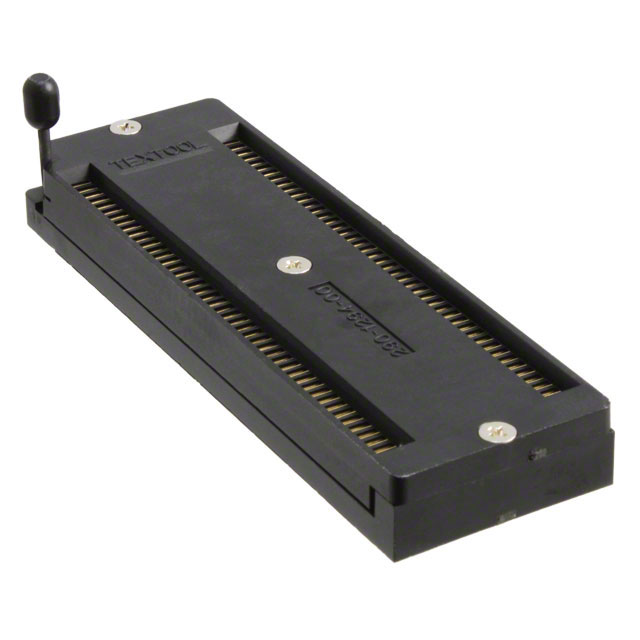

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 290-1294-00-3302J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 290-1294-00-3302J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 290-1294-00-3302J |
|---|---|
| Manufacturer | 3M |
| Description | CONN IC DIP SOCKET ZIF 90POS GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $17.024 | $16.023 | $15.523 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $14.521 | $13.72 | $13.319 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 290-1294-00-3302J | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN IC DIP SOCKET ZIF 90POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2337 pcs | Data sheet | SOIC Socket Pin Sequence.070" Dip Socket |
| Category | Connectors, Interconnects | Type | DIP, ZIF (ZIP) |
| Termination Post Length | 0.130" (3.30mm) | Termination | Solder |
| Series | Textool™ | Pitch - Post | 0.070" (1.78mm) |
| Pitch - Mating | 0.070" (1.78mm) | Packaging | Bulk |
| Other Names | 0 54007 53582 9 2901294003302J 3M5012 7010404013 JE150140653 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 90 (2 x 45) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polysulfone (PSU), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | 15 mOhm |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
