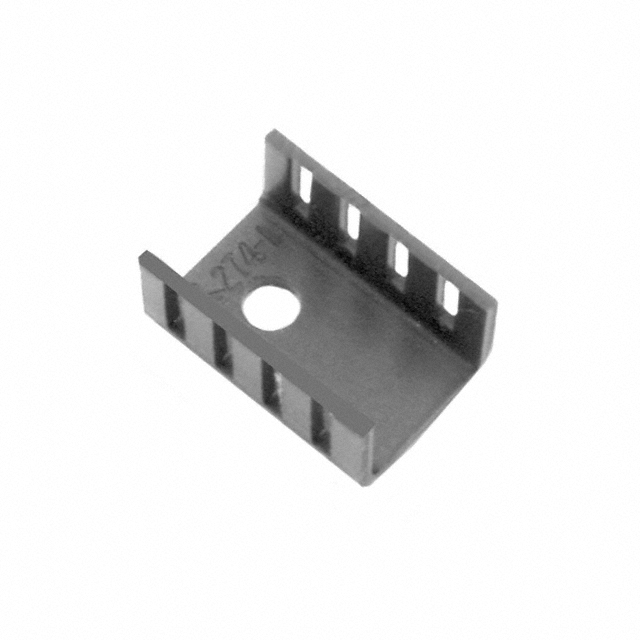

274-3AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 274-3AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 274-3AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 274-3AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEAT SINKS BOARD LEVEL PWR SEMI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 7155 pcs | ||||
|---|---|---|---|---|---|
| $0.055 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 274-3AB | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEAT SINKS BOARD LEVEL PWR SEMI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 431471 pcs | Data sheet | 274, 281 Series DatasheetBoard Level Heat Sinks Catalog |
| Category | Fans, Thermal Management | Width | 0.520" (13.21mm) |
| Type | Board Level | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 9.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | 274 | Power Dissipation @ Temperature Rise | 2.0W @ 62°C |
| Package Cooled | TO-220 | Other Names | Q5346208 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.750" (19.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.250" (6.35mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.0W @ 62°C Board Level | Attachment Method | Bolt On |
