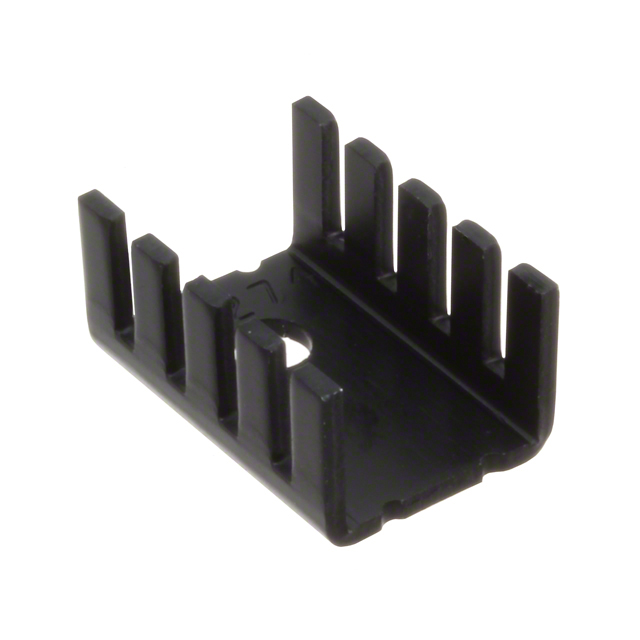

274-2AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 274-2AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 274-2AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 274-2AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK LOW HEIGHT BLK TO-220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.083 | $0.08 | $0.076 | $0.074 | $0.073 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.068 | $0.064 | $0.058 | $0.056 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 274-2AB | Manufacturer | Wakefield-Vette |
|---|---|---|---|
| Description | HEATSINK LOW HEIGHT BLK TO-220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 390242 pcs | Data sheet | 274, 281 Series DatasheetBoard Level Heat Sinks Catalog |
| Category | Fans, Thermal Management | Width | 0.520" (13.21mm) |
| Type | Board Level | Thermal Resistance @ Natural | 25.00°C/W |
| Thermal Resistance @ Forced Air Flow | 7.00°C/W @ 400 LFM | Shape | Rectangular, Fins |
| Series | 274 | Power Dissipation @ Temperature Rise | 2.0W @ 50°C |
| Package Cooled | TO-220 | Other Names | 2742AB 345-1087 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 0.750" (19.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 2.0W @ 50°C Board Level | Attachment Method | Bolt On |
