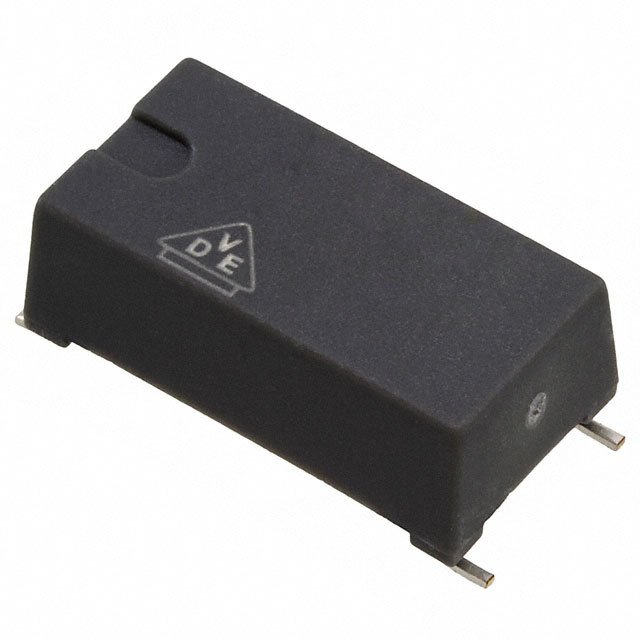

CNY65ST
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CNY65ST with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CNY65ST with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CNY65ST |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISOLATOR 13.9KV TRANS 4-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | 800 pcs | 1200 pcs | 2000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.487 | $0.392 | $0.372 | $0.351 | $0.331 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CNY65ST | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISOLATOR 13.9KV TRANS 4-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66931 pcs | Data sheet | CNY(64,65)xxST |
| Category | Isolators | Voltage - Output (Max) | 32V |
| Voltage - Isolation | 13900VDC | Voltage - Forward (Vf) (Typ) | 1.32V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | 5µs, 3µs |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 2.4µs, 2.7µs | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing | Output Type | Transistor |
| Other Names | CNY65ST-ND CNY65STTR |
Operating Temperature | -55°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Manufacturer Standard Lead Time | 27 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 13900VDC 1 Channel 4-SMD | Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 300% @ 5mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 75mA |
