CNY65A

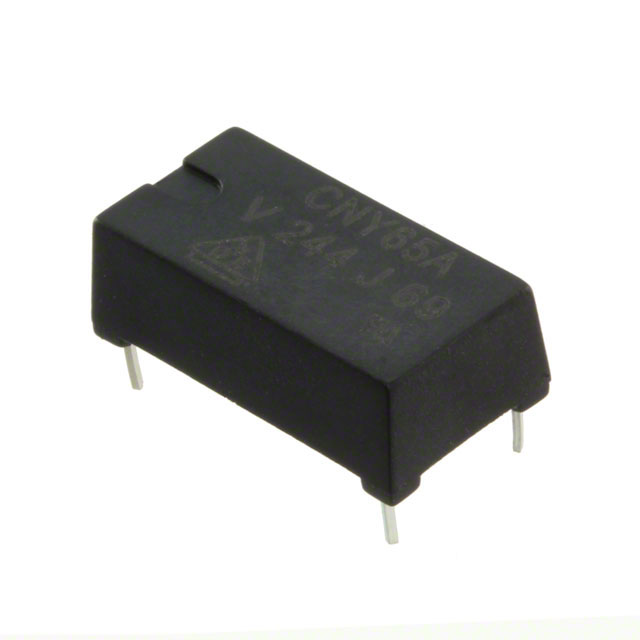

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CNY65A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CNY65A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CNY65A |
|---|---|
| Manufacturer | Vishay / Semiconductor - Opto Division |
| Description | OPTOISOLATOR 13.9KV TRANS 4-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.882 | $0.781 | $0.579 | $0.504 | $0.453 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.403 | $0.346 | $0.327 | $0.315 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CNY65A | Manufacturer | Vishay / Semiconductor - Opto Division |
|---|---|---|---|
| Description | OPTOISOLATOR 13.9KV TRANS 4-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66182 pcs | Data sheet | CYN64-66 |
| Category | Isolators | Voltage - Output (Max) | 32V |
| Voltage - Isolation | 13900VDC | Voltage - Forward (Vf) (Typ) | 1.25V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | 5µs, 3µs |
| Supplier Device Package | 4-DIP | Series | - |
| Rise / Fall Time (Typ) | 2.4µs, 2.7µs | Packaging | Tube |
| Package / Case | 4-EDIP (0.300", 7.62mm) | Output Type | Transistor |
| Operating Temperature | -55°C ~ 85°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 13900VDC 1 Channel 4-DIP |
| Current Transfer Ratio (Min) | 63% @ 10mA | Current Transfer Ratio (Max) | 125% @ 10mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 75mA |
