Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > PI3543-00-EVAL1

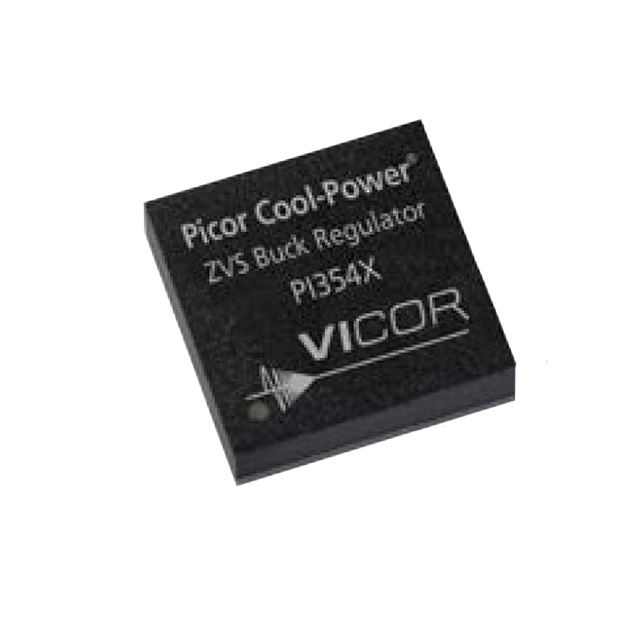

PI3543-00-EVAL1

PI3543-00-EVAL1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3543-00-EVAL1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PI3543-00-EVAL1
Manufacturer	Vicor
Description	EVAL BOARD FOR PI3543-00-LGIZ
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2716 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$14.061

Product parameter
Data sheet

Product parameter

Part Number	PI3543-00-EVAL1	Manufacturer	Vicor
Description	EVAL BOARD FOR PI3543-00-LGIZ	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2716 pcs	Data sheet	PI354x-00 Datasheet
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	36 V ~ 60 V	Utilized IC / Part	PI3543-00
Supplied Contents	Board(s)	Series	Cool-Power® ZVS
Regulator Topology	Buck-Boost	Outputs and Type	1, Non-Isolated
Other Names	1102-5477	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Up or Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	400kHz	Detailed Description	PI3543-00 Cool-Power® ZVS DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	10A	Board Type	Fully Populated
