Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > PI3302-03-EVAL1

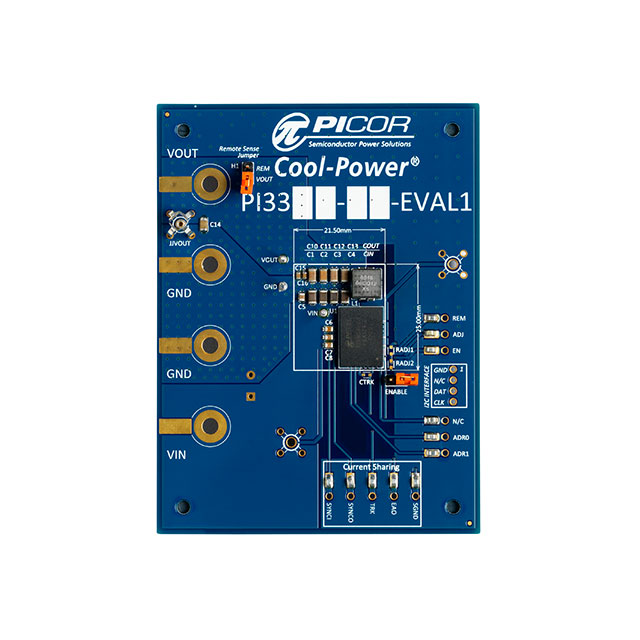

PI3302-03-EVAL1

PI3302-03-EVAL1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3302-03-EVAL1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PI3302-03-EVAL1
Manufacturer	Vicor
Description	EVAL BOARD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2773 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$13.79

Product parameter
Data sheet

Product parameter

Part Number	PI3302-03-EVAL1	Manufacturer	Vicor
Description	EVAL BOARD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2773 pcs	Data sheet	PI33xx-xx-EVAL1 User Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	5V
Voltage - Input	-	Utilized IC / Part	PI3302-03
Supplied Contents	Board(s)	Series	Cool-Power®
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	PI3302-03 Cool-Power® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	-	Board Type	Fully Populated
