Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > PI3302-00-EVAL1

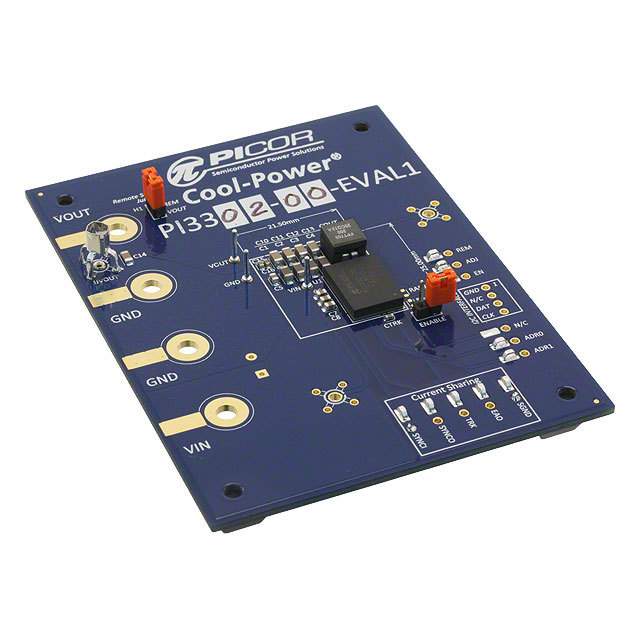

PI3302-00-EVAL1

PI3302-00-EVAL1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3302-00-EVAL1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PI3302-00-EVAL1
Manufacturer	Vicor
Description	PICOR EVAL BD PI3302-00
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2182 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$13.94

Product parameter
Data sheet

Product parameter

Part Number	PI3302-00-EVAL1	Manufacturer	Vicor
Description	PICOR EVAL BD PI3302-00	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2182 pcs	Data sheet	PI33xx-xx-EVAL1 Guide PI33xx-x0-LGIZ Series Datasheet
Category	Development Boards, Kits, Programmers	Voltage - Output	5V
Voltage - Input	8 V ~ 36 V	Utilized IC / Part	PI3302-00
Supplied Contents	Board(s)	Series	Cool-Power®
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	1102-1509 PI330200EVAL1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Main Purpose	DC/DC, Step Down
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	1MHz
Detailed Description	PI3302-00 Cool-Power® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board	Current - Output	10A
Board Type	Fully Populated
